SPECIFICATIONS

ADC: 10 bit/12 bit Out 8 bit/12 bit

ADC bits: 10 bits

Brand Name: svbony

Cable 1: 2m USB3.0 cable

Cable 2: 1.5m 6Pin guiding cable

Camera Interface Type: M42 interface

Camera Resolution: Maximum resolution 1920*1080

Exposure Time: 1ms~30min

Full well: 38.2Ke

Gain value: 0-500

High-concerned chemical: None

Maximum Frame Rate: 1920*1080@107FPS

Model Number: SVBONY SV305 Pro

Operating System: Windows

Origin: Mainland China

Pixels: 2.1MP

Protective Window: AR coated window

QE: 91%

Read noise: 0.7e

Senso: r1/2.8" CMOS Color

Sensor Model: IMX662

Sensor Type: Color Sensor

Shutter: Electronic Rolling Shutter

Shutter Type: Rolling Shutter

Storage Humidity: 20%-90%

Storage Temperature: -20℃~60℃

Support OS: Windows-without win 7, Linux, Raspberry Pi & Mac OS

Support Telescope: Telescope with 1.25 inch aperture

Type: Monocular

USB: USB 3.0

USB Type: USB3.0

Weight: 135g

Working Humidity: 30%-80%

Working Temperature: -10℃~50℃

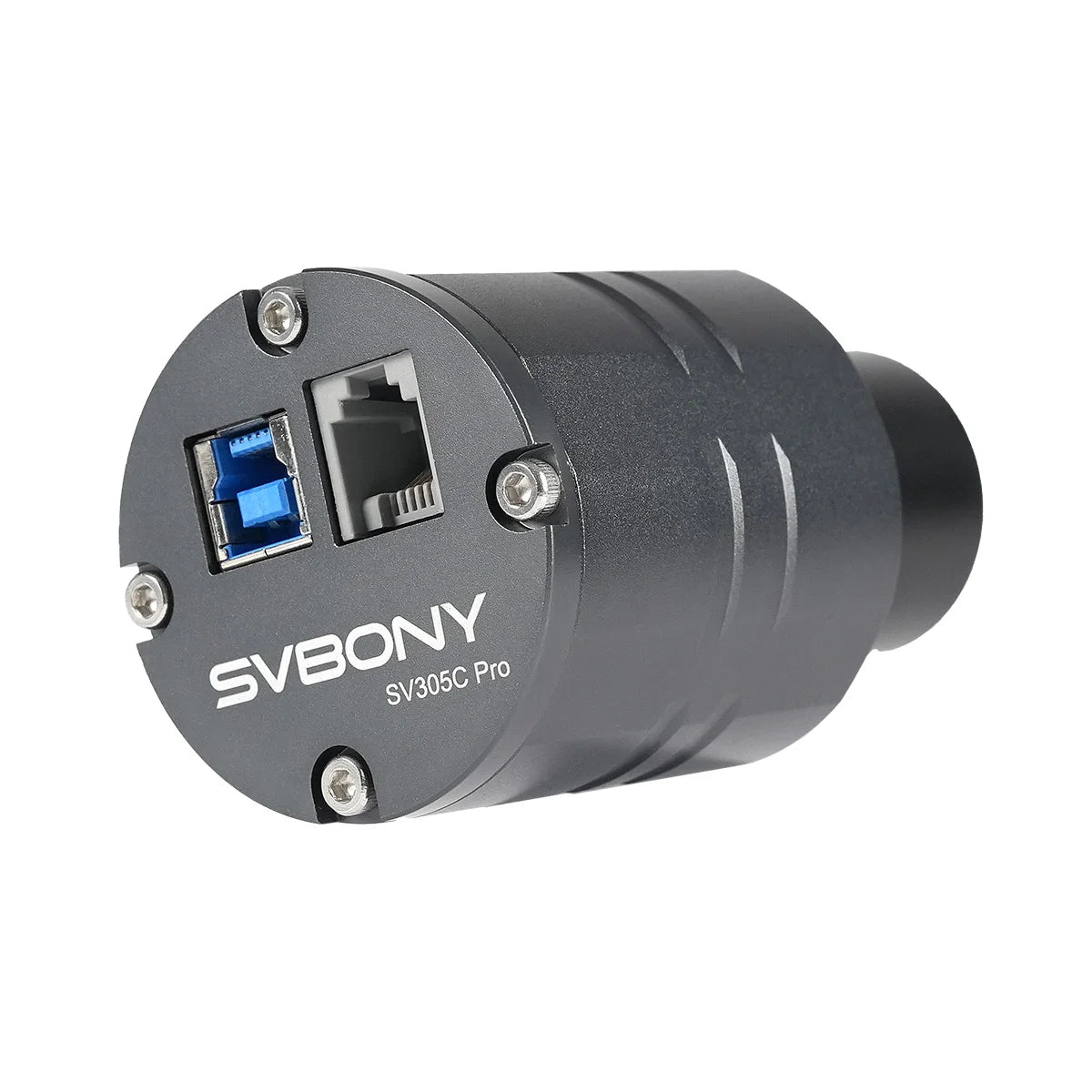

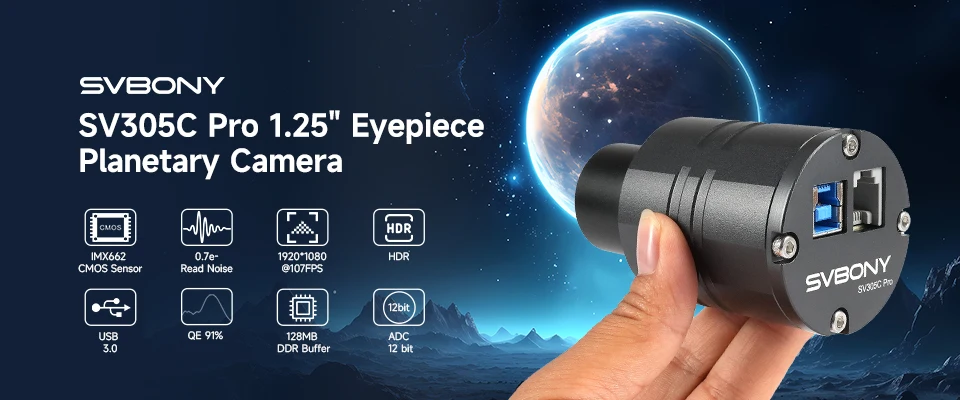

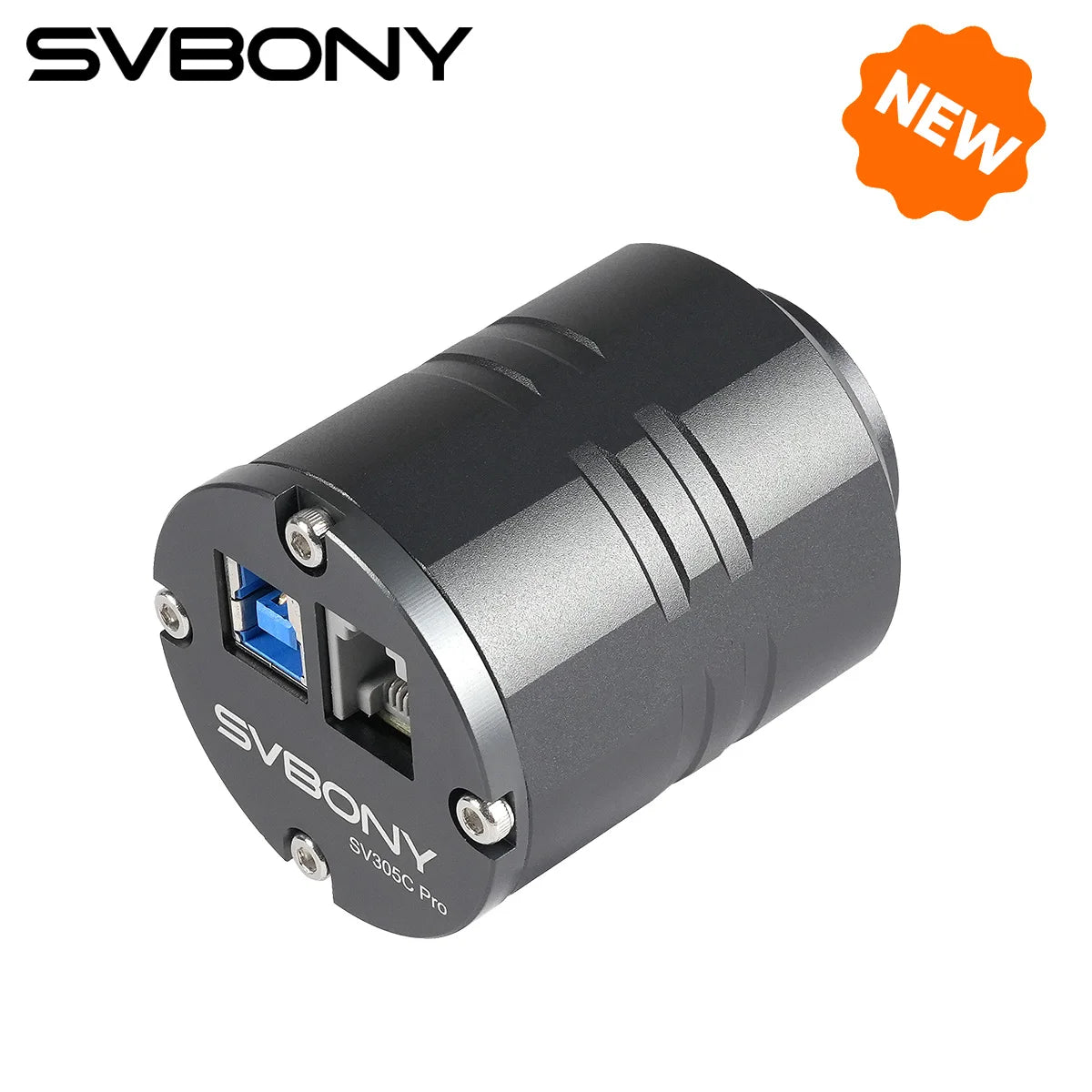

SVBONY SV305C Pro 1.25" Eyepiece  Planetary Camera

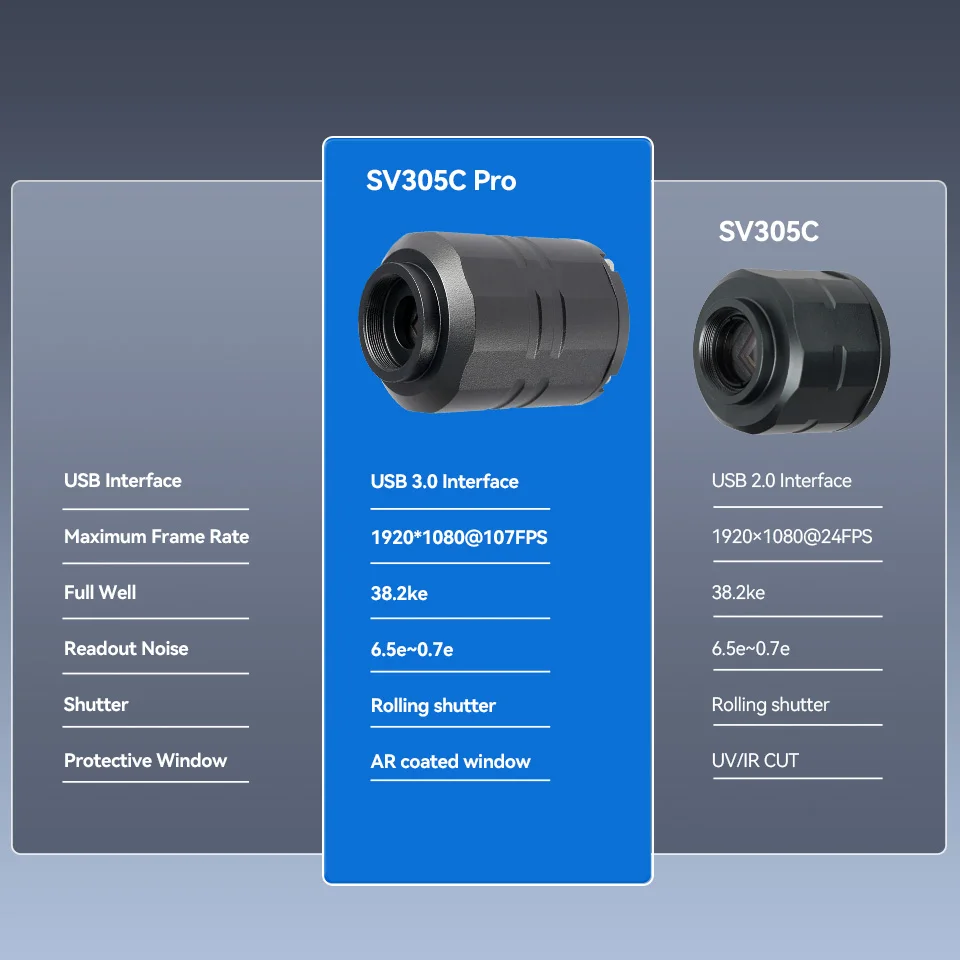

SV305C & SV305C Pro comparison

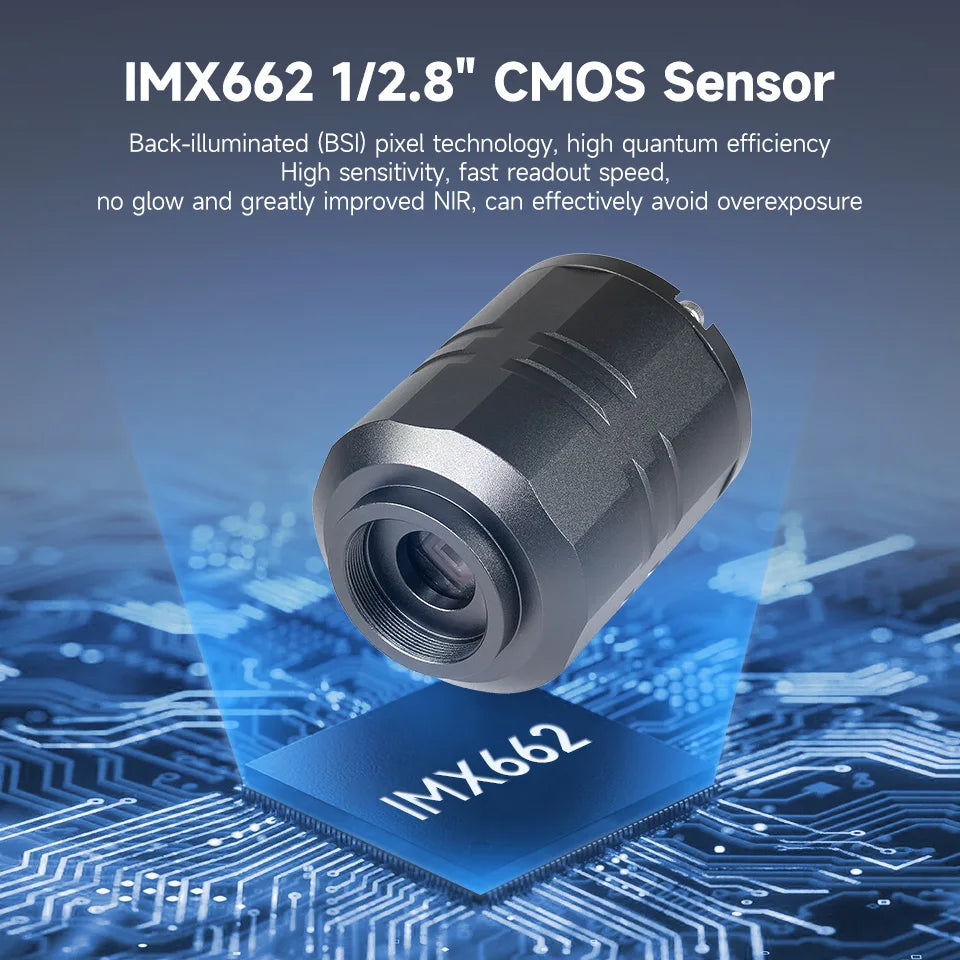

IMX662 1/2.8" CMOS Sensor

Planetary camera, with ultra-high sensitivity and low noise, it captures clear planetary details even in low light. High frame rate ensures sharp images of fast-moving planets like Jupiter and Saturn

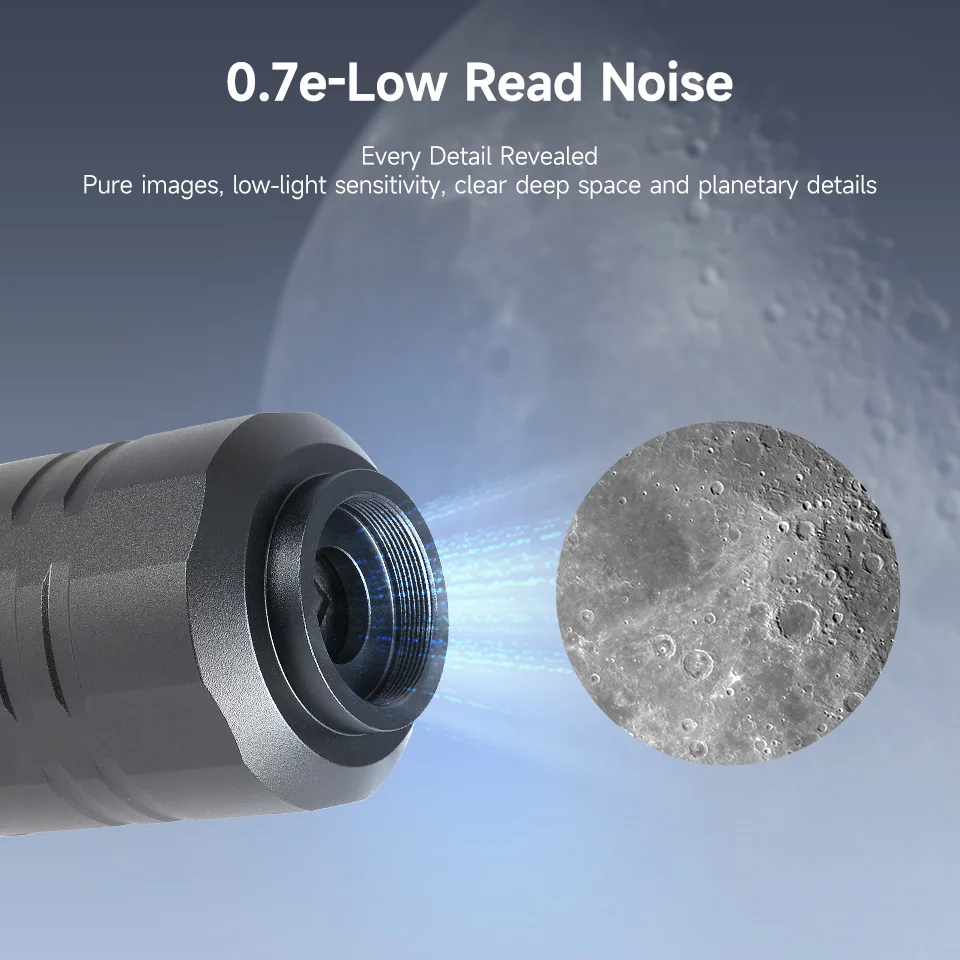

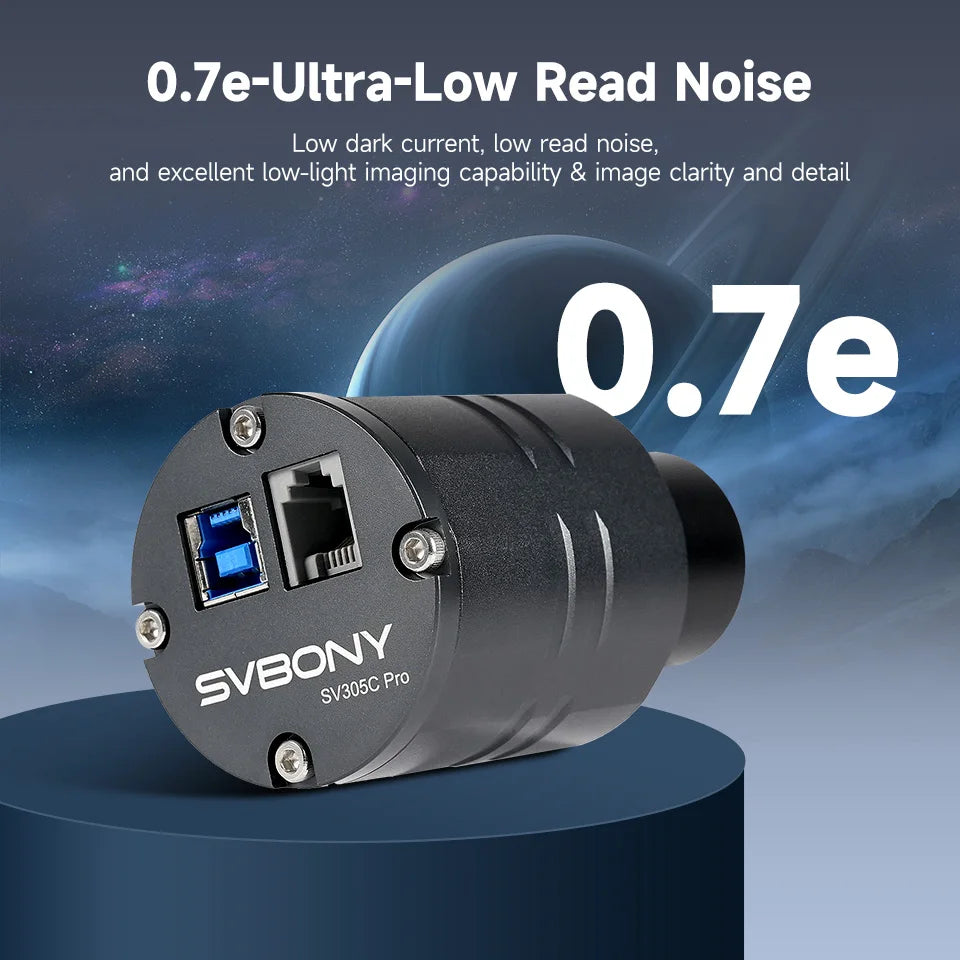

0.7e- Low Read Noise

Aachieve unparalleled clarity with the planetary camera featuring ultra-low readout noise of just 0.7e-. This means cleaner; sharper images with less interference; even in low-light conditions

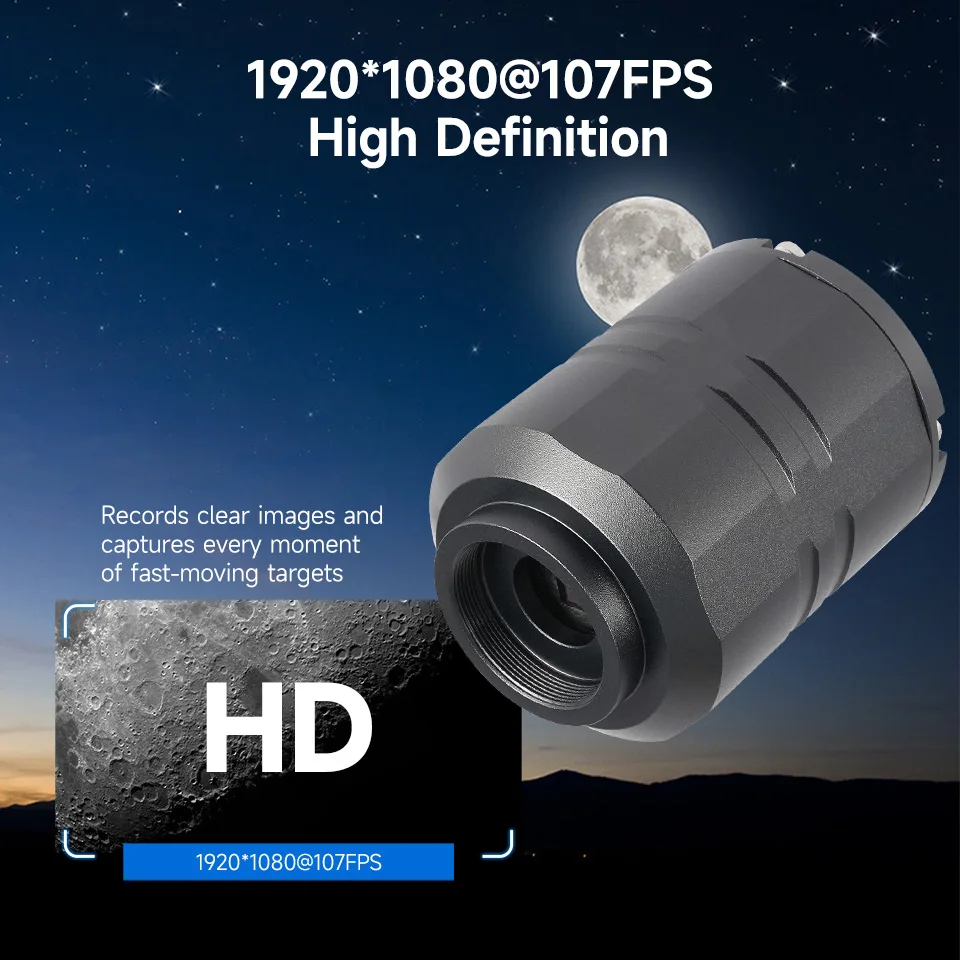

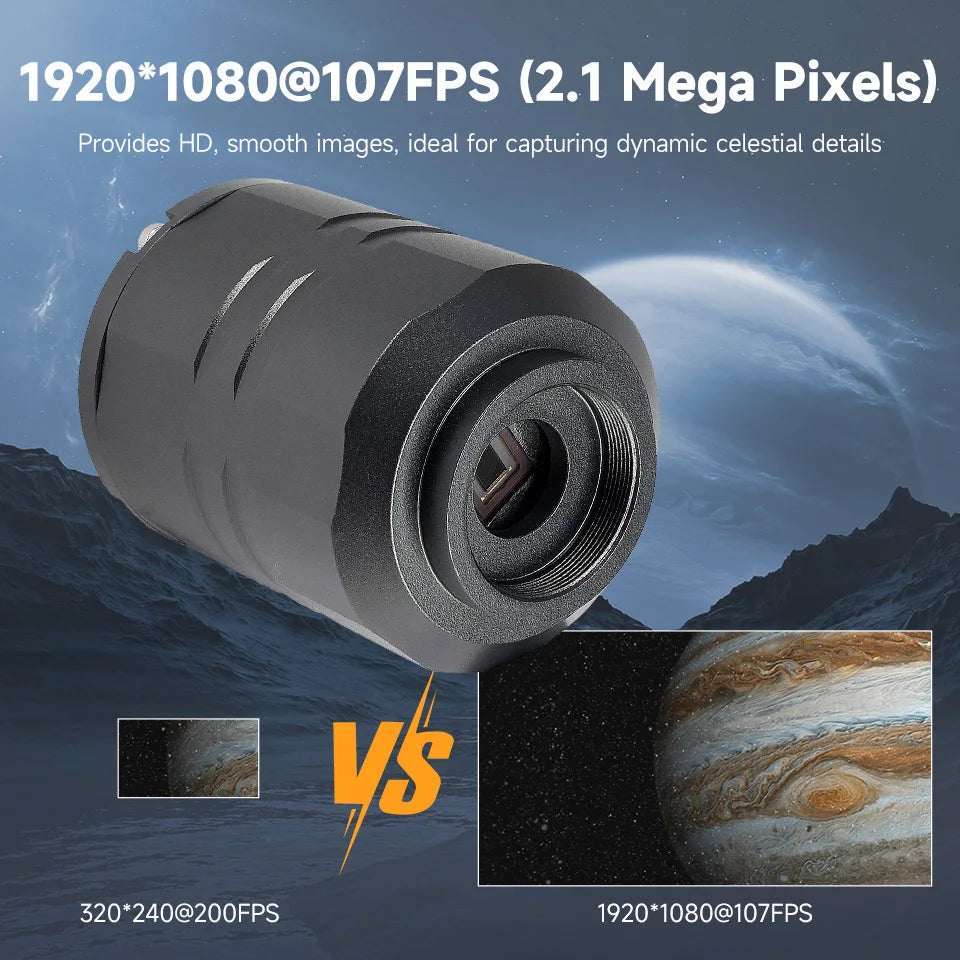

1920*1080@107FPS High Definition

Capture every moment, our planetary camera is equipped with 1920x1080 full HD resolution and an impressive 107FPS frame rate, this planetary camera captures fast-moving celestial bodies, delivering smooth and clear videos and images

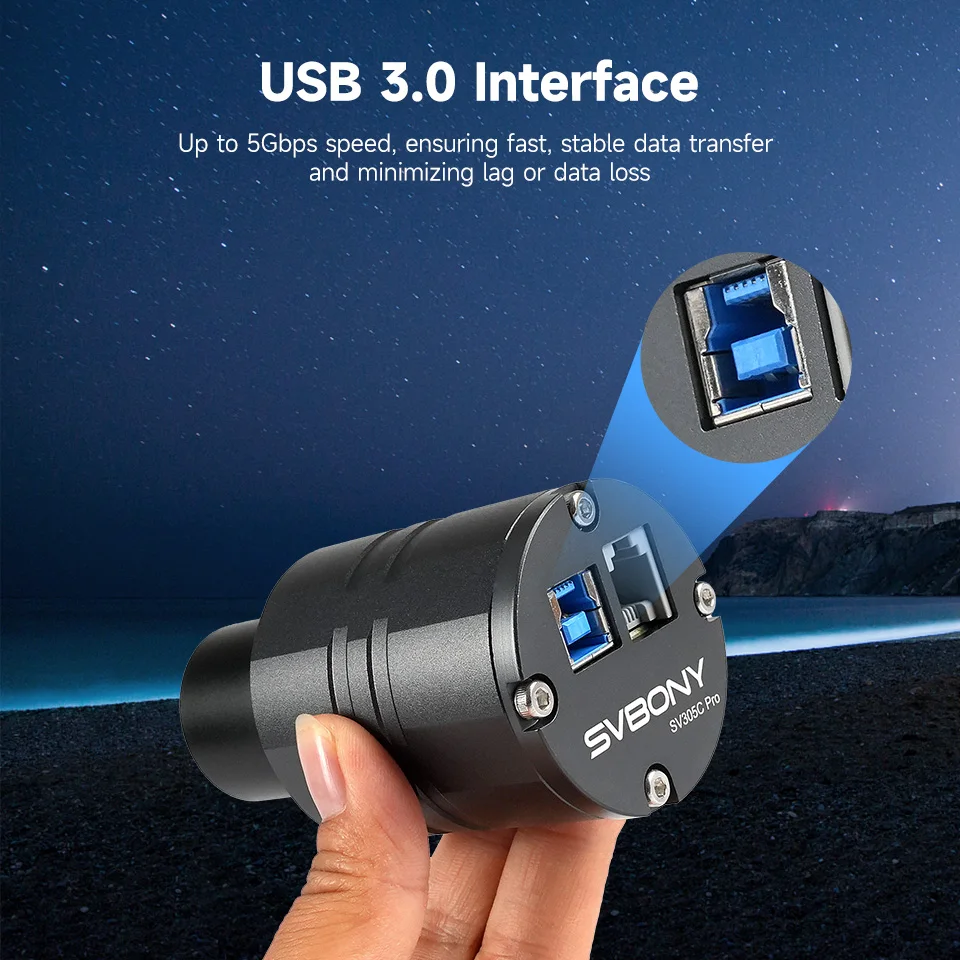

USB 3.0 Interface

Lightning-fast transfers, our telescope camera features USB 3.0 high-speed transfer technology, offering a staggering 5Gbps speed—over 10 times faster than USB 2.0. This enhances your astrophotography workflow significantly

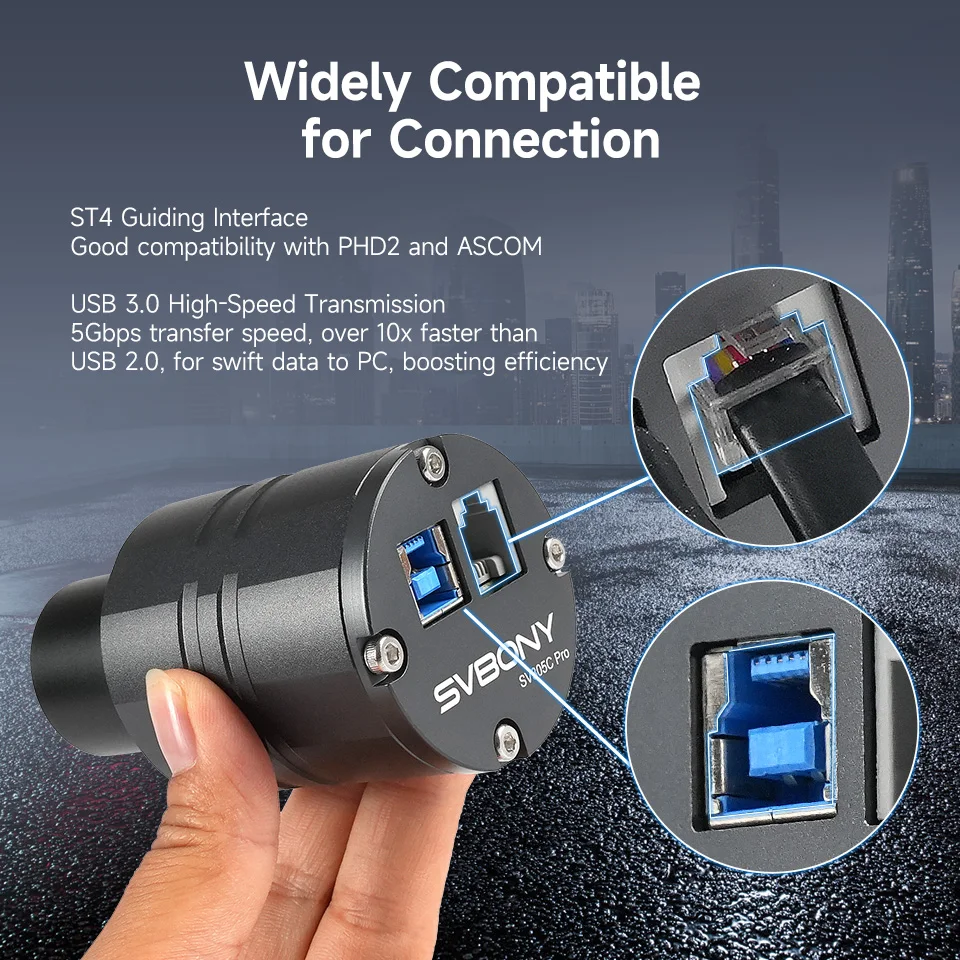

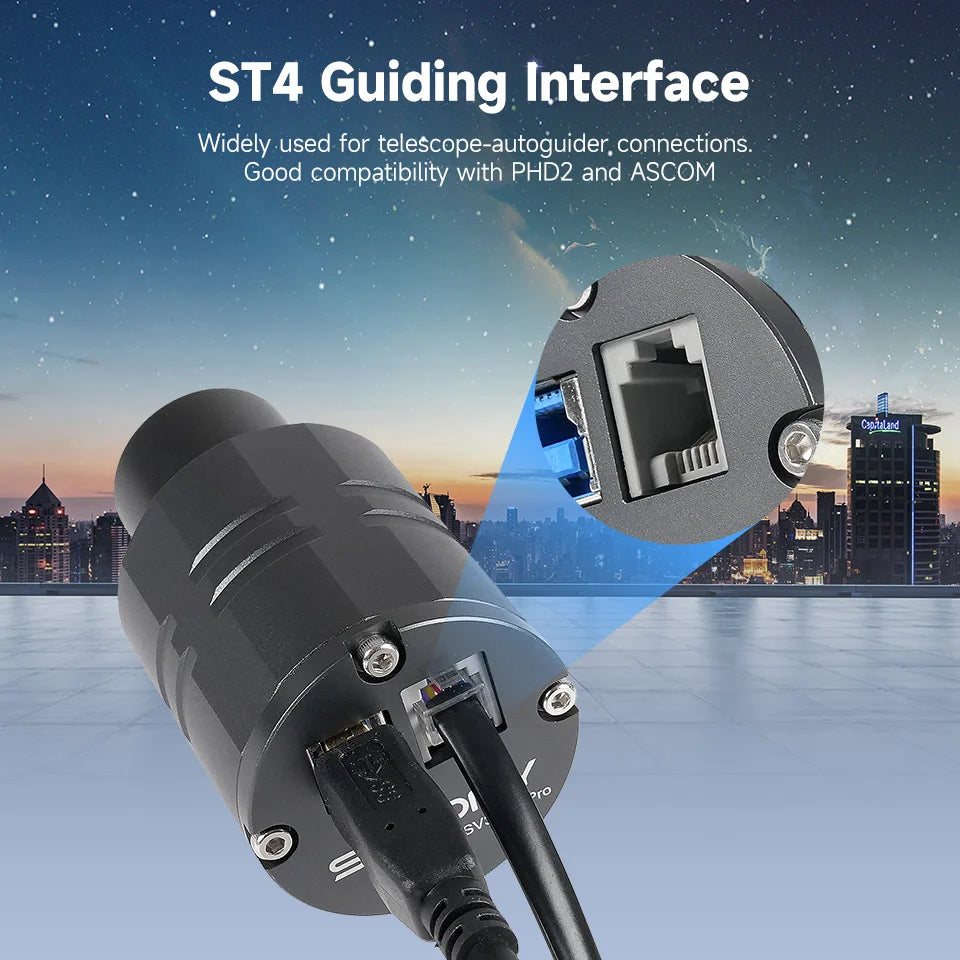

ST4 Guiding Interface

Wide compatibility, our telescope camera equipped with an ST4 guiding interface is perfectly compatible with PHD2 and ASCOM platforms. This means you can easily connect our astronomy camera to a variety of telescopes and guiding equipment

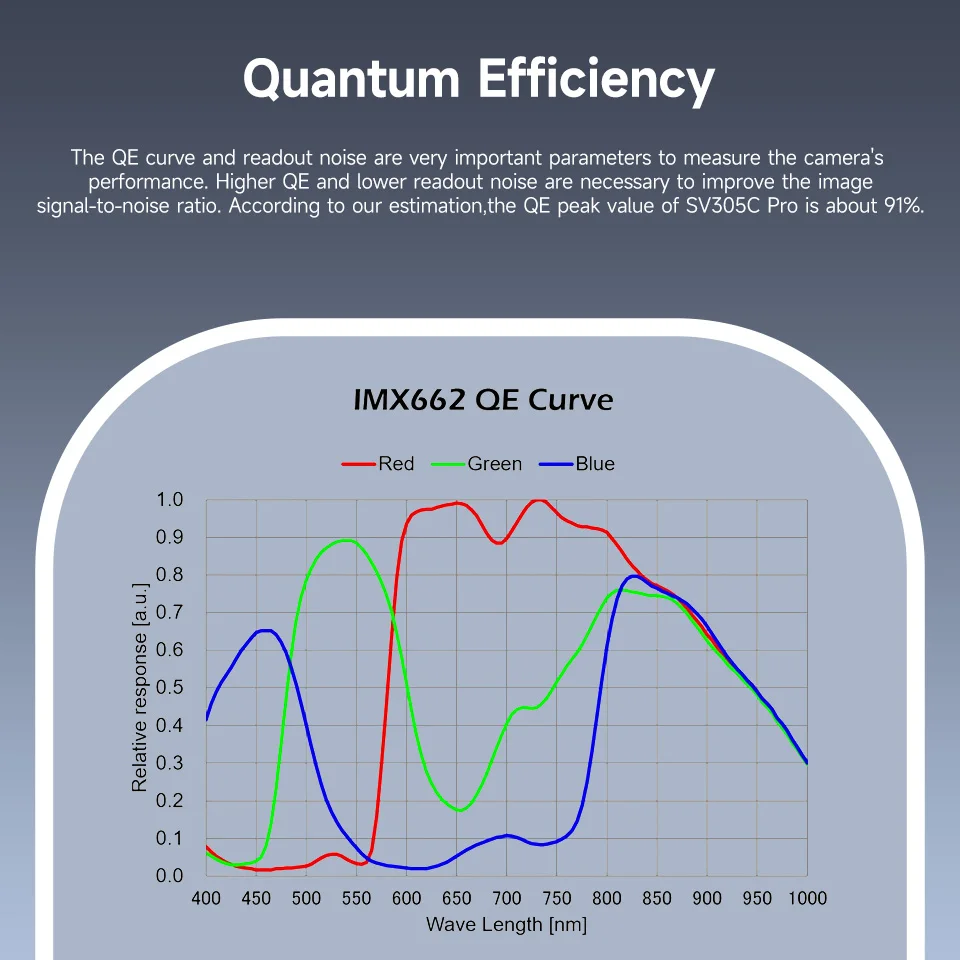

Quantum Efficiency

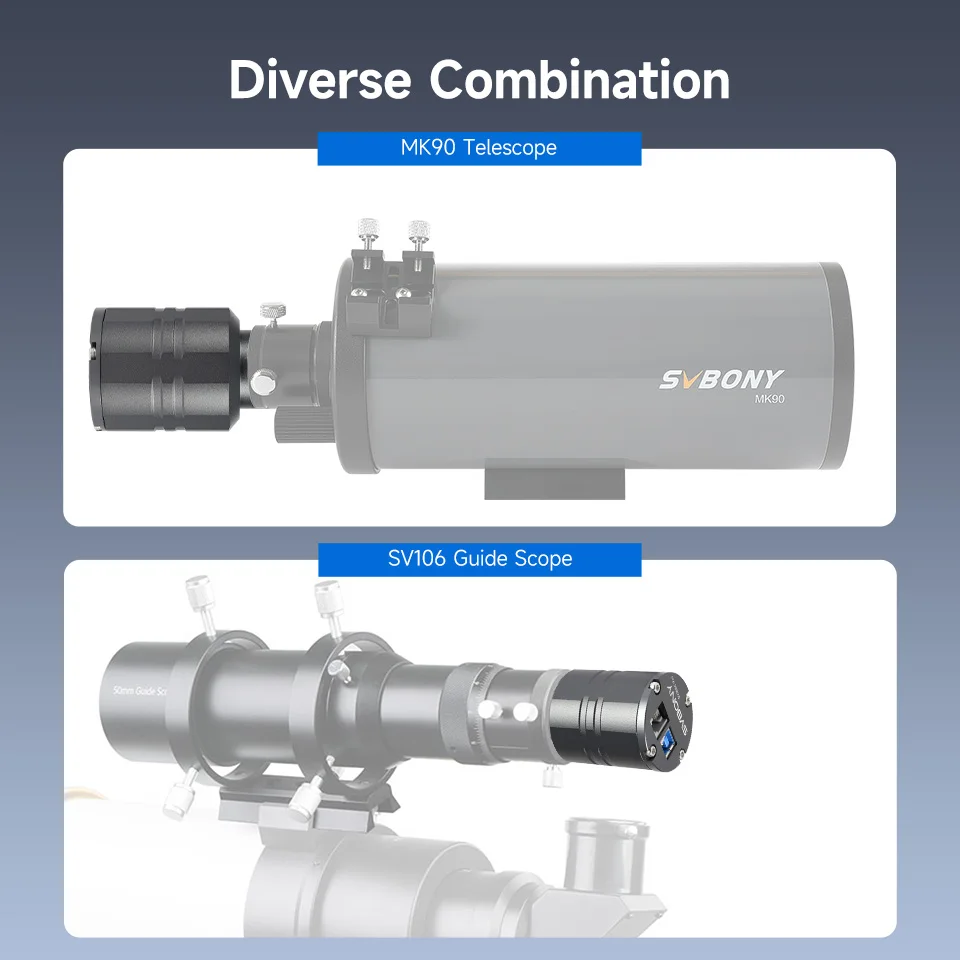

Diverse Combination

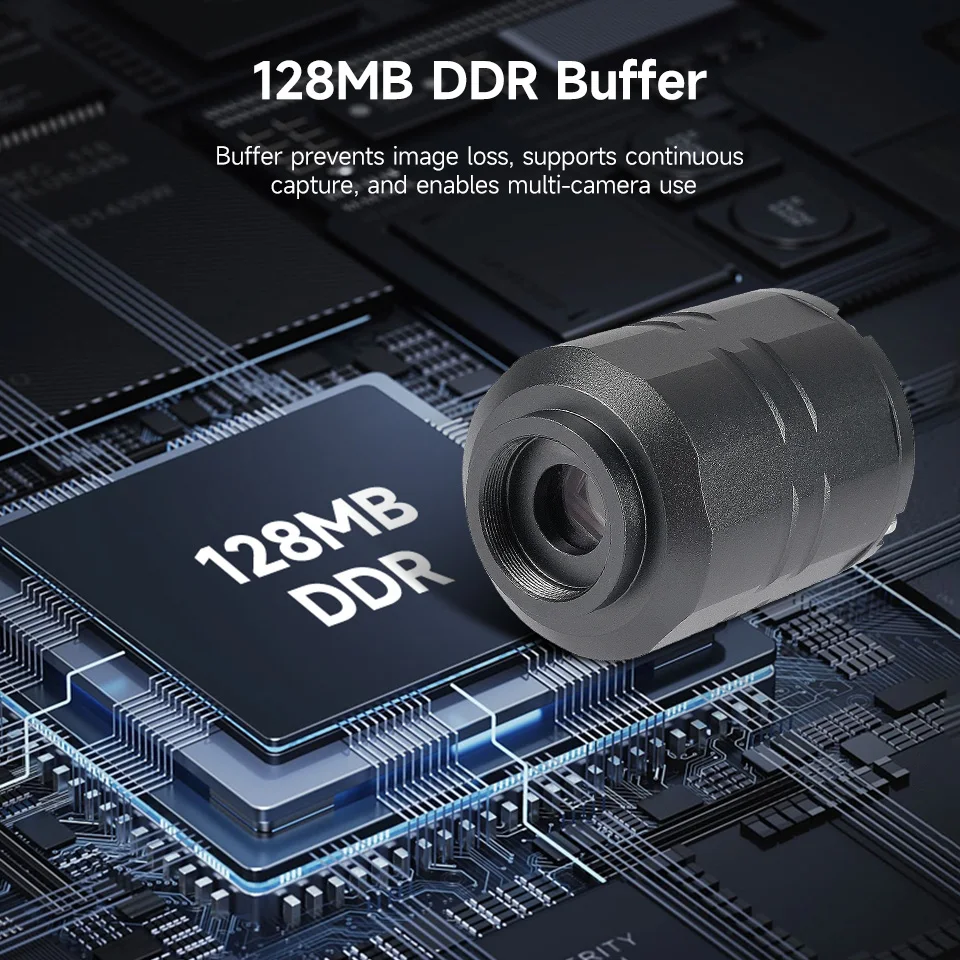

128MB DDR Buffer

The planetary camera with a 128MB DDR buffer prevents image loss, supporting continuous capture for uninterrupted imaging sessions, perfect for capturing detailed planetary shots without missing a moment

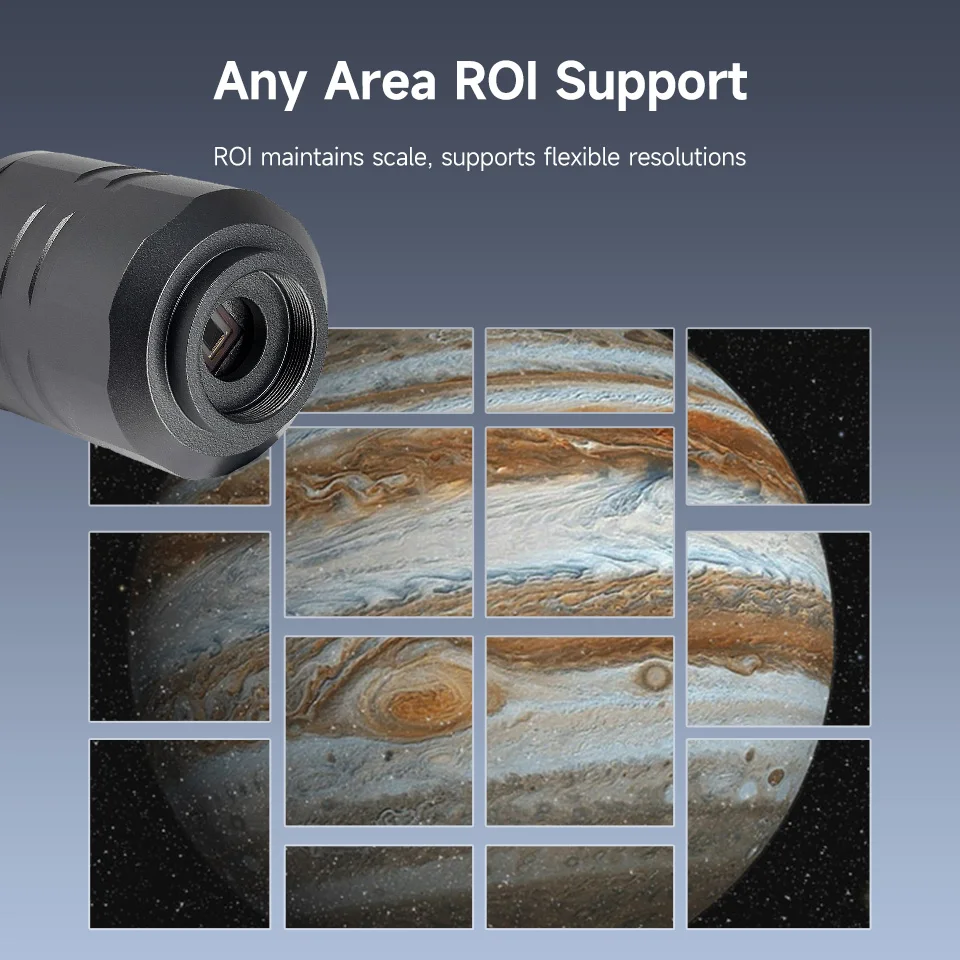

Any Area ROI Support

The planetary camera supports Any Area ROI, allowing you to capture specific regions of interest without losing scale. With flexible resolution options, you can tailor your imaging for optimal performance

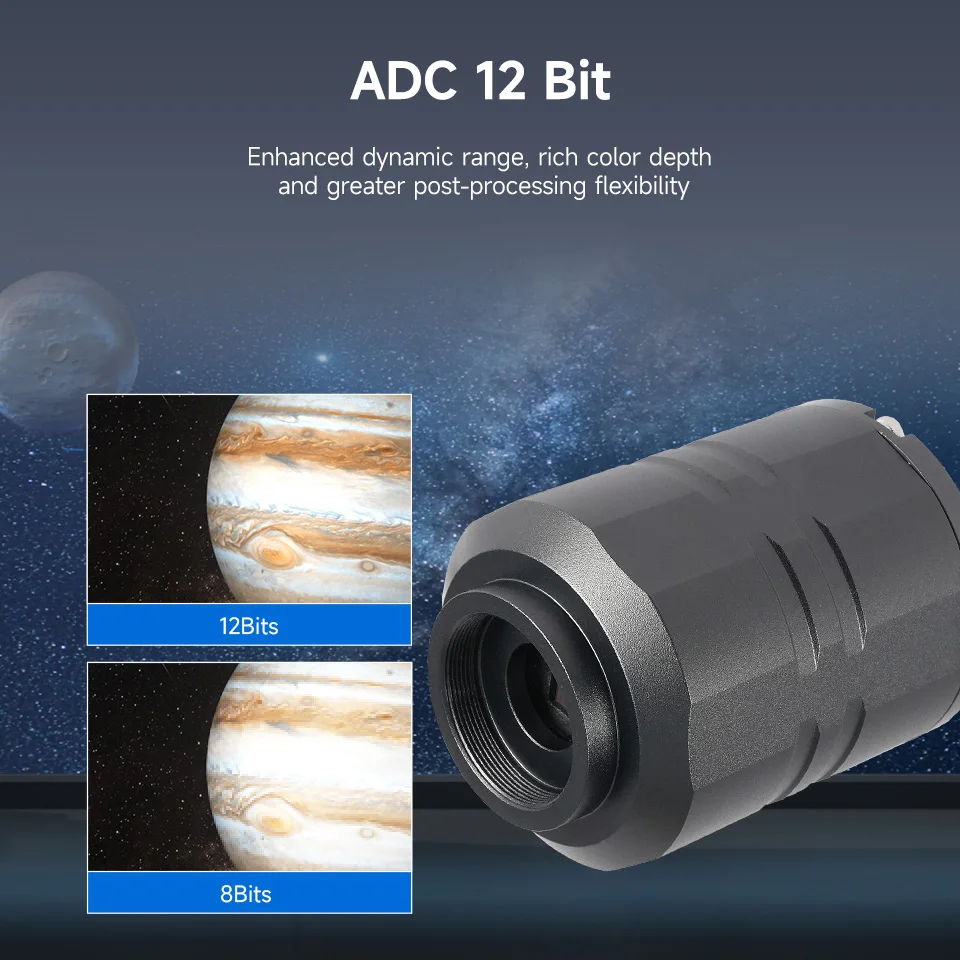

ADC 12 Bit

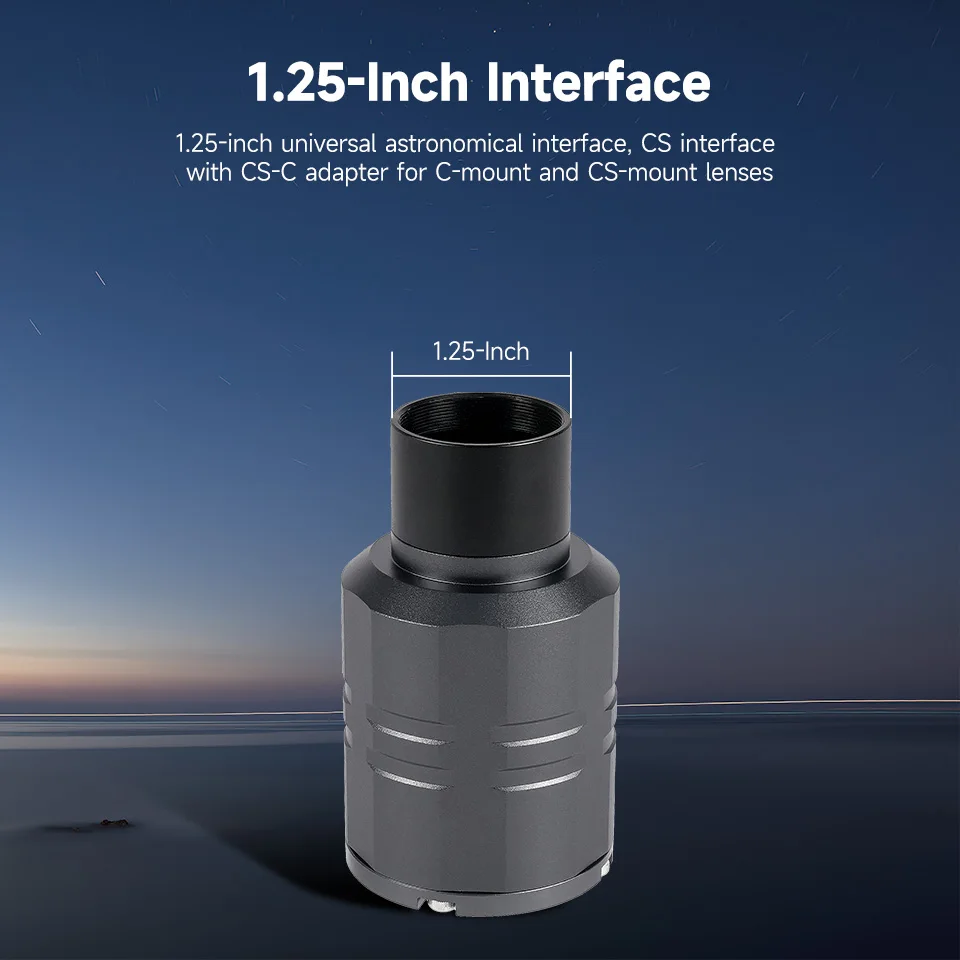

1.25-Inch Interface

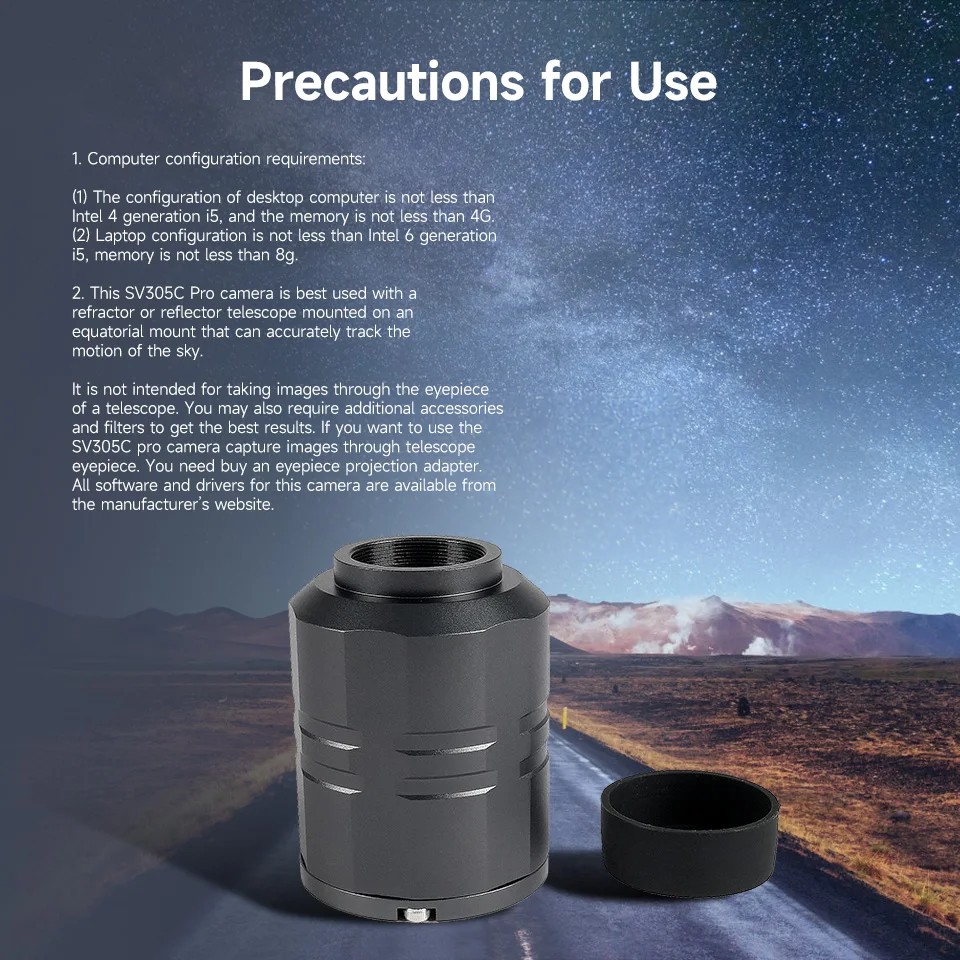

Precautions for Use

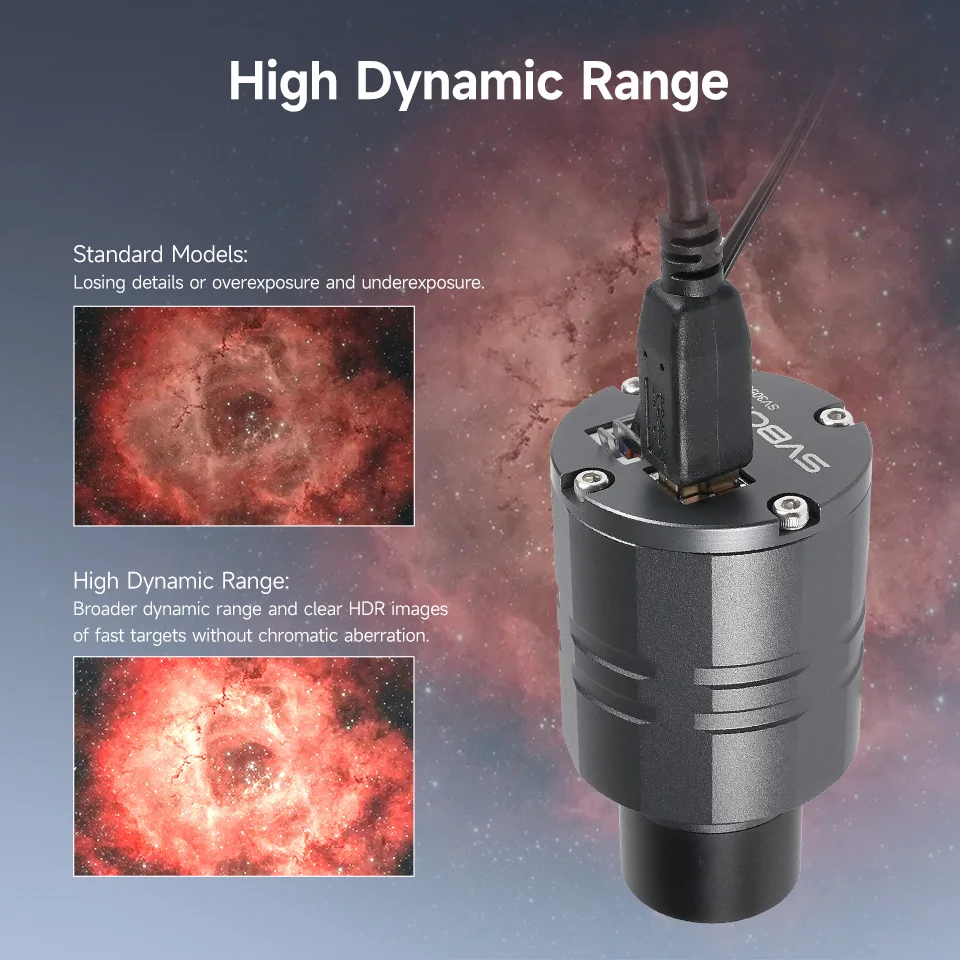

High Dynamic Range

The planetary camera with High Dynamic Range (HDR) captures fast-moving targets with clear, vibrant images, offering a broader dynamic range and no chromatic aberration for precise planetary details

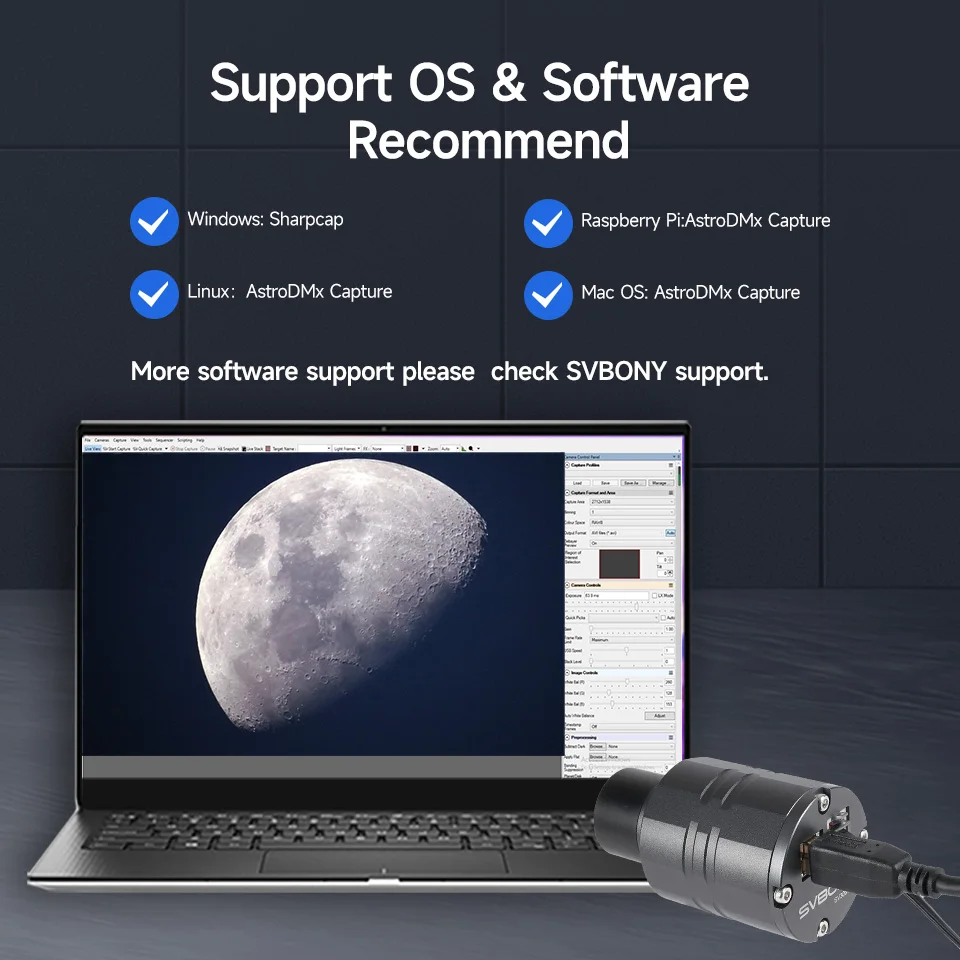

Support OS & Software Recommend

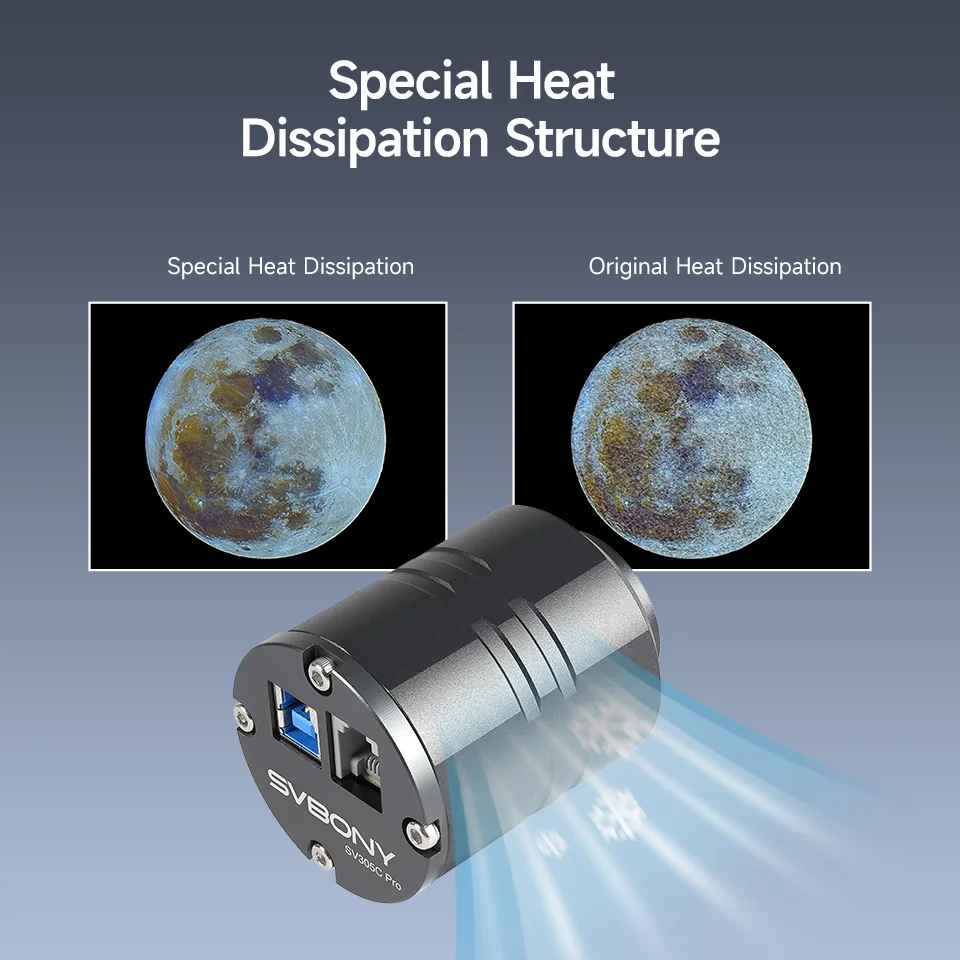

Special Heat Dissipation Structure

The planetary camera with special heat dissipation ensures stability during long exposures, reducing noise and improving image quality for clear, high-quality planetary shots

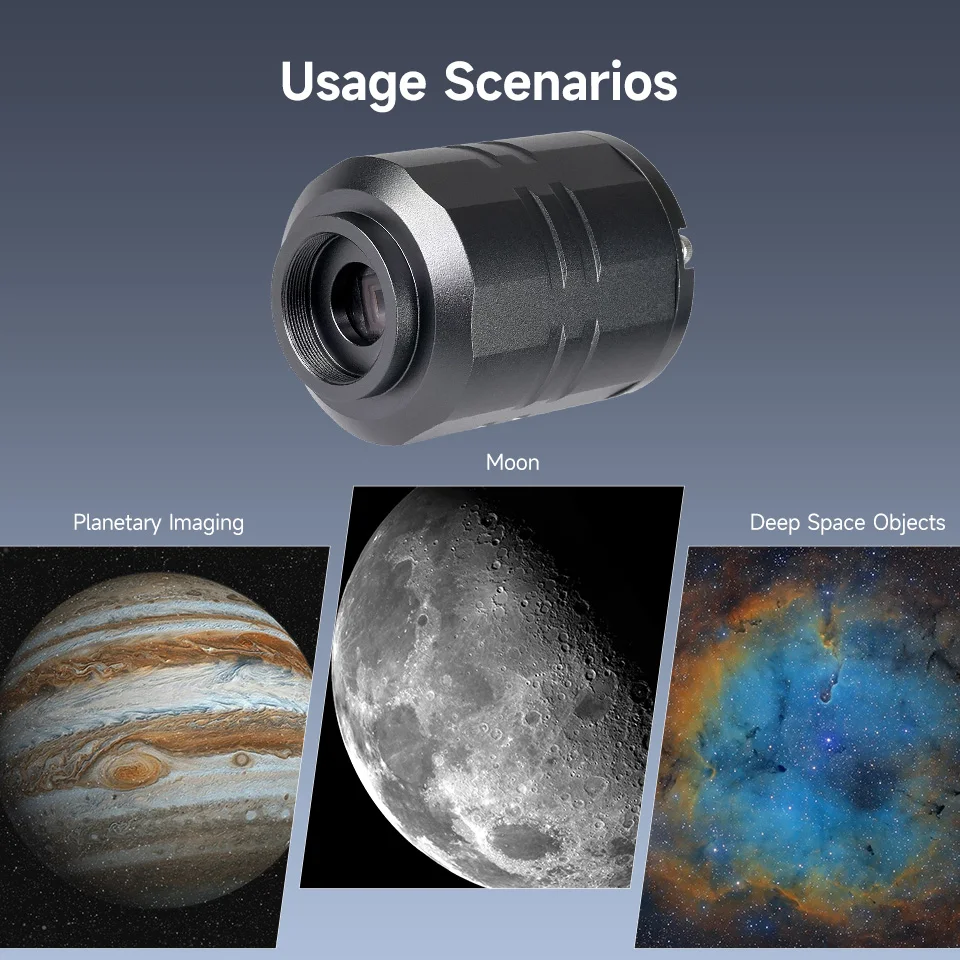

Usage Scenarios

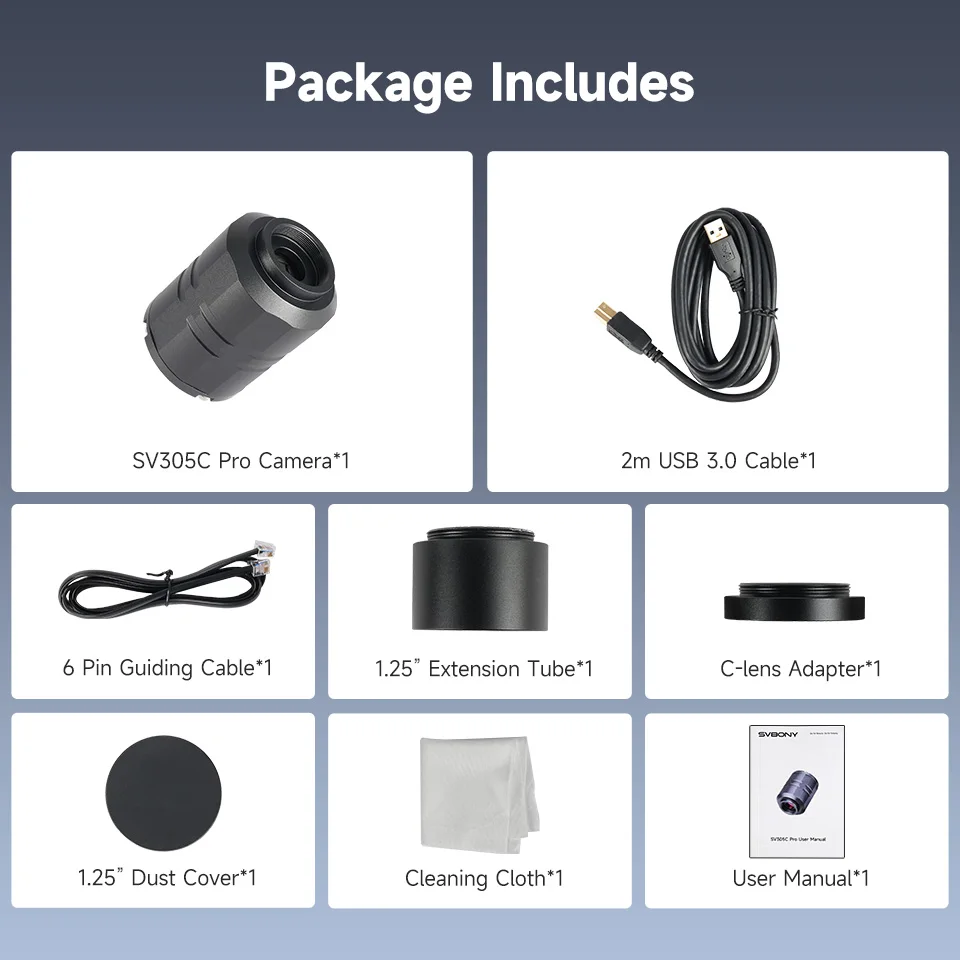

Package Includes:

SV305C Pro Camera*1

2m USB 3.0 Cable*1

6 Pin Guiding Cable*1

1.25” Extension Tube*1

C-lens Adapter*1

1.25” Dust Cover*1

Cleaning Cloth*1

User Manual*1

Package options:

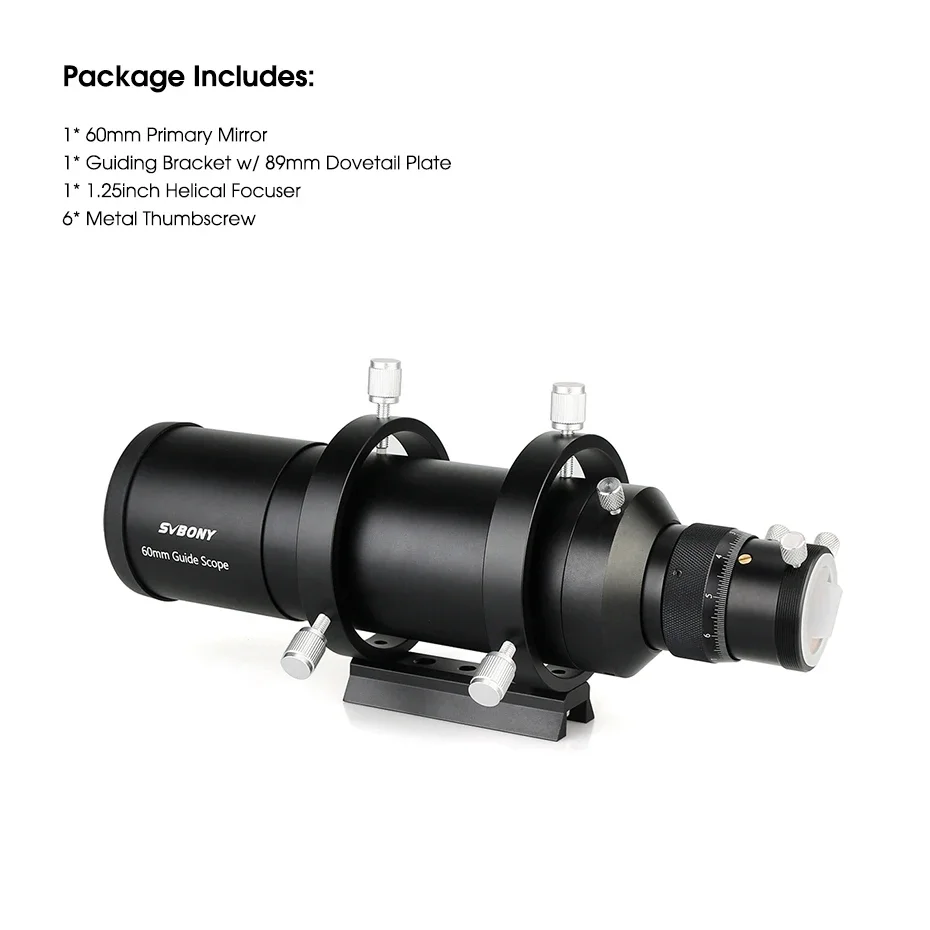

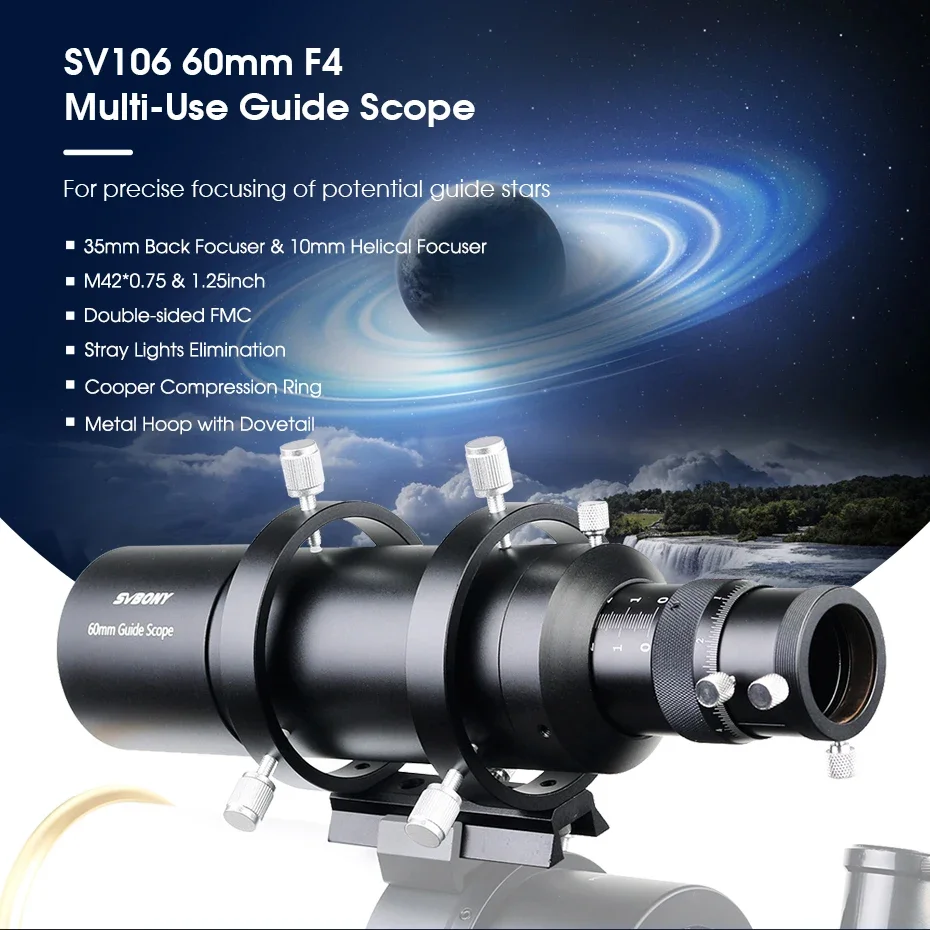

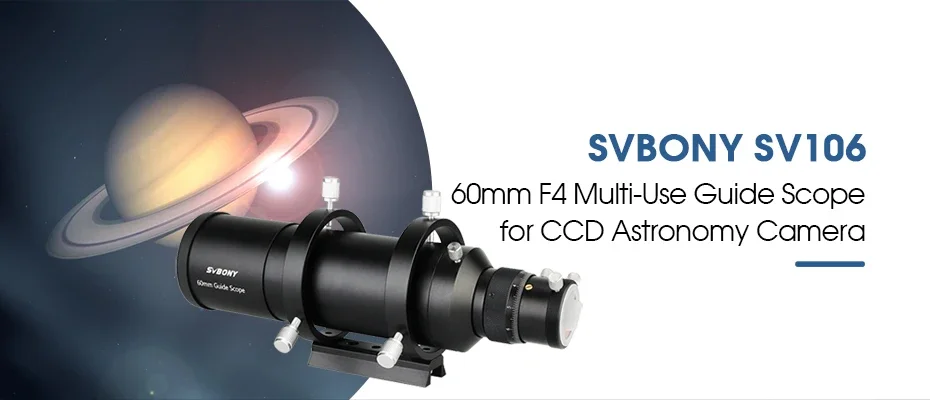

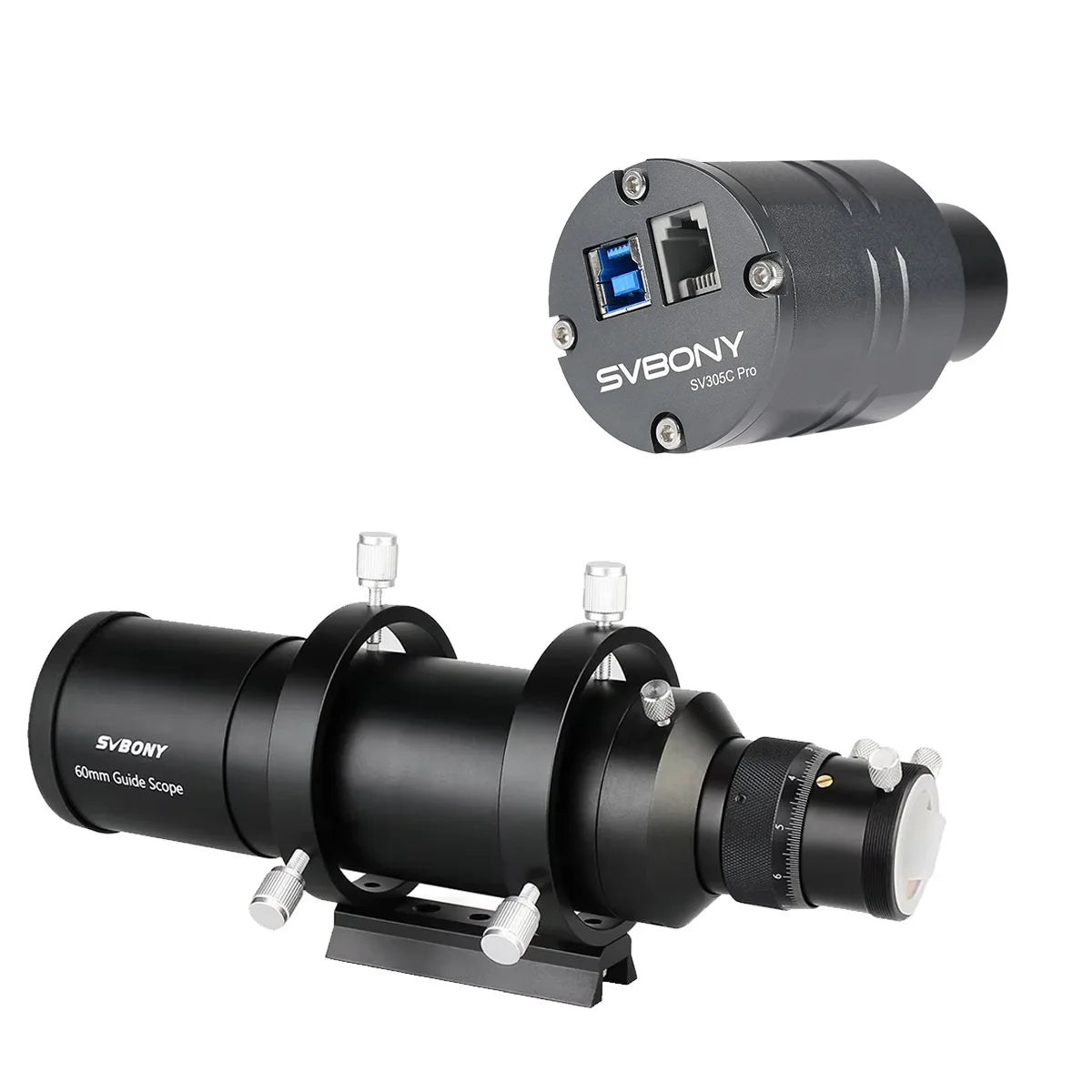

SV305C Pro or SV305C Pro+SV106 60mm
