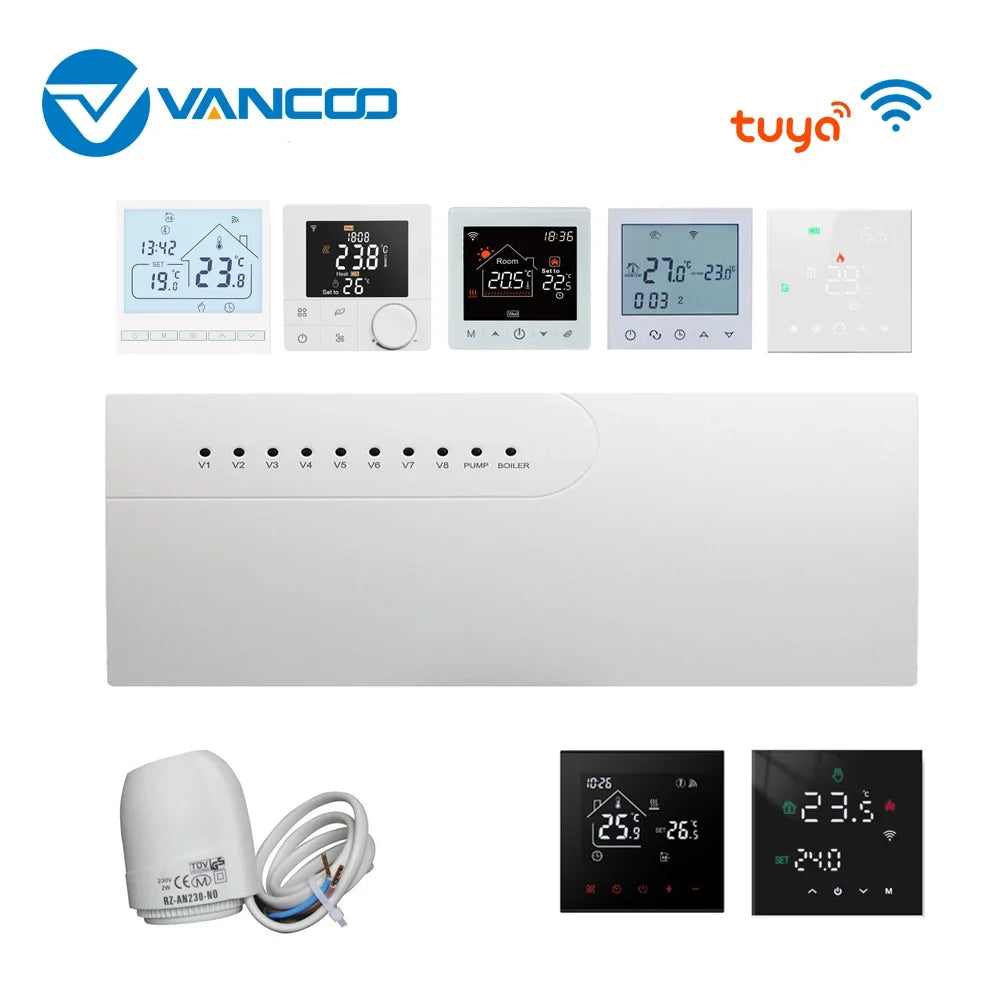

Vancoo 3A Water Floor Heating System Smart WIFI Thermostat with Central Actuators Connecting 8 Sub-chamber Hub Controller For Gas Boiler

Thermostat , Actuators , Hub Controller

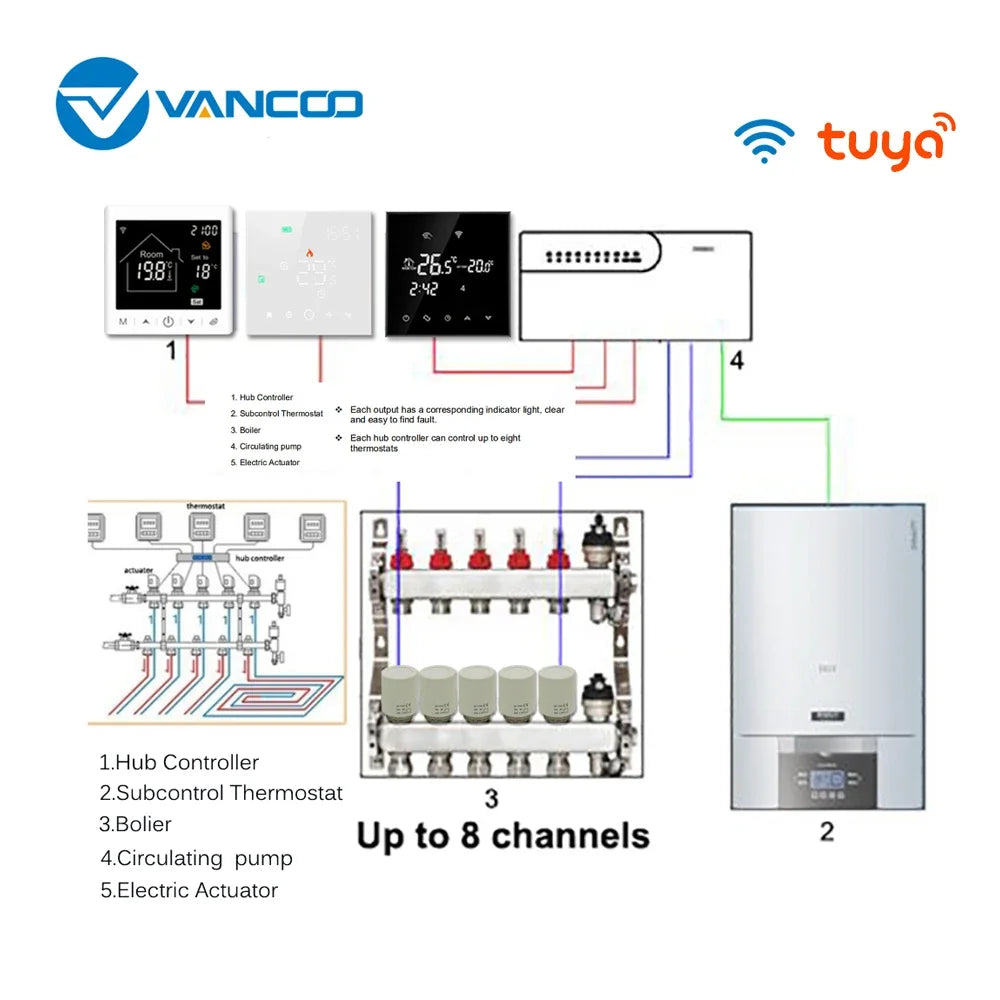

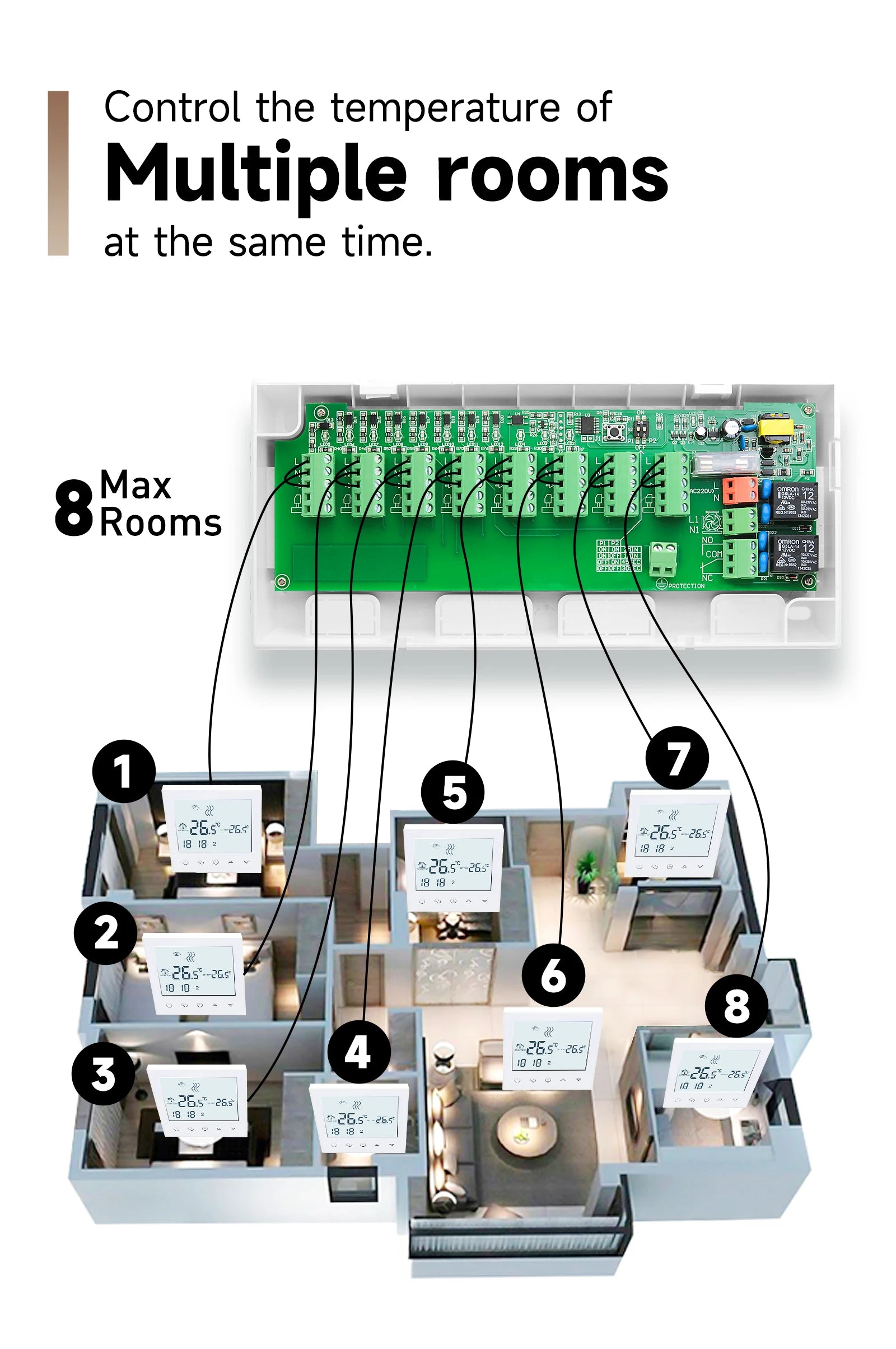

Connection:One Hub can control 8 pcs thermostats. 1 Thermostat can control up to 4 electric thermal actuators

------  CCT-10 SERIES  ------

Description:

CCT-10 Hub Controllers is used in water underfloor heating system. It can control zone valves, or thermostats. As central control unit, it can also control boiler and circulating pump. According to user's set temperature, hub controller can control to open or close boiler, circulating pump and electric actuators, to achieve the purpose of comfort and energy consumption saving.

Specifications:

Power Supply : 170-240VAC 50 / 60Hz

Current Load : 3A

Working Temp : -20 ℃ ~ 60 ℃

Storage Temp : -20 ℃ ~ 70 ℃

Size : 240mmX110mmX42mm

Note:

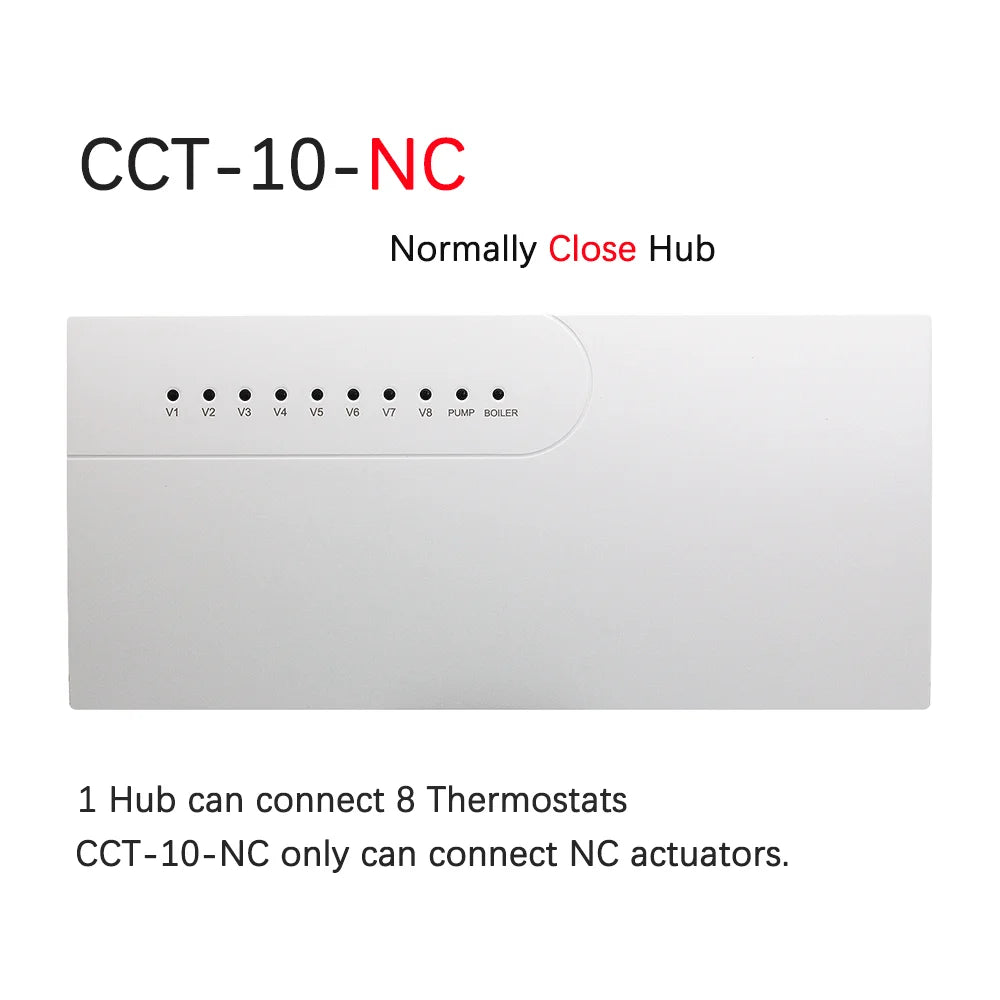

1. CCT-10-NC is used to control Normally Closed electric thermal actuators;

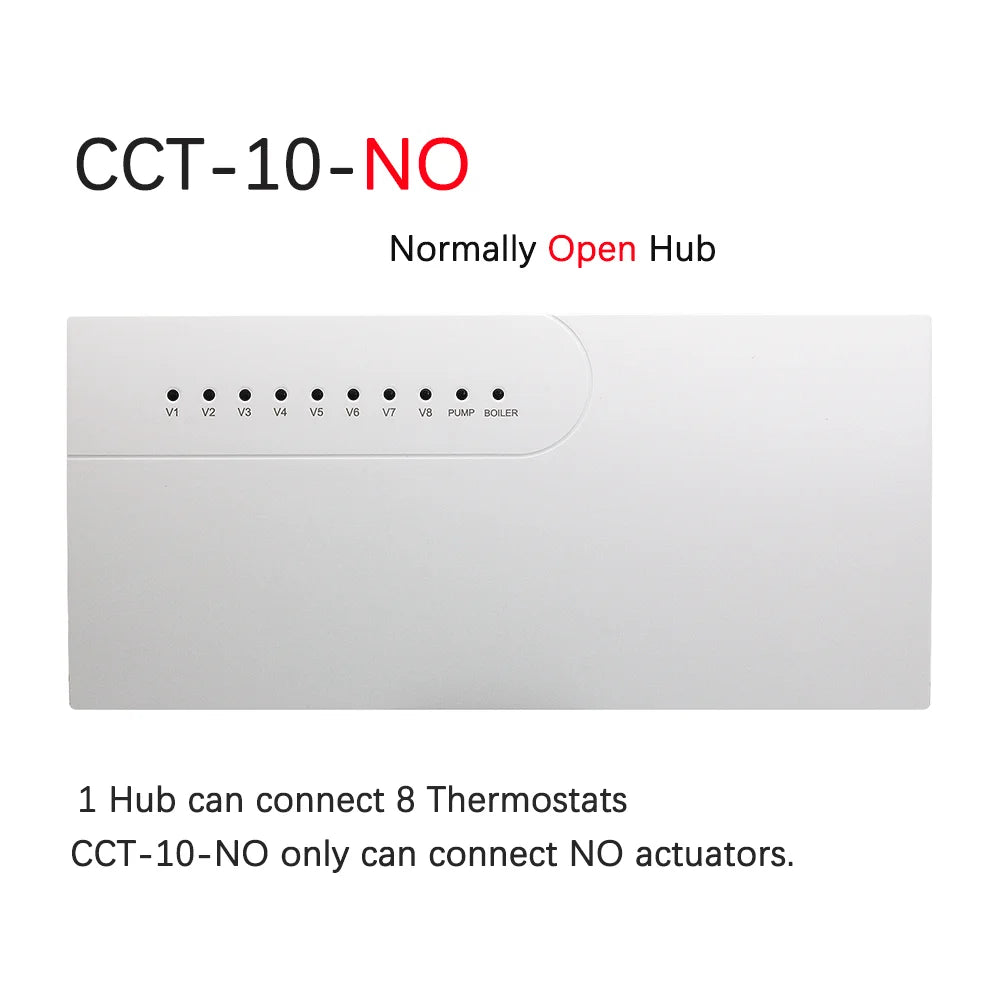

2. CCT-10-NO is used to control Normally Opend electric thermal actuators.

3. CCT-10 need to be connected to the thermostat via wires, it can't be connected via wifi or wireless signal

Thermostat -- Common Features And Functions

Power Supply : 200 ~ 240V 50/60Hz

Power Supply : AC95- 220V, 50/60Hz

Power Supply : AC100- 240V, 50/60Hz

Current Load : 3A

Storage Temp. : -5~55℃

Set Temp. Range : 5-60℃

Accuracy : 0.5℃ (factory default ±1℃)

Dimension : 86x86x13.3mm

Display Screen : LCD

Shell Material : Anti-Flammable PC

External Material : PC+ABS (flame retardant)

1. WIFI for Android & Apple iOS

2. Large screen display and touch button

3. Power-off memory function

4. Real-time data save function

5. 5+2 or 6+1or 7days six periods program schedule

6. Accurate Temperature 0.5°C accuracy.

7. Anti-freezing Function

8. With Child Lock Function

9. Default Factory Setting

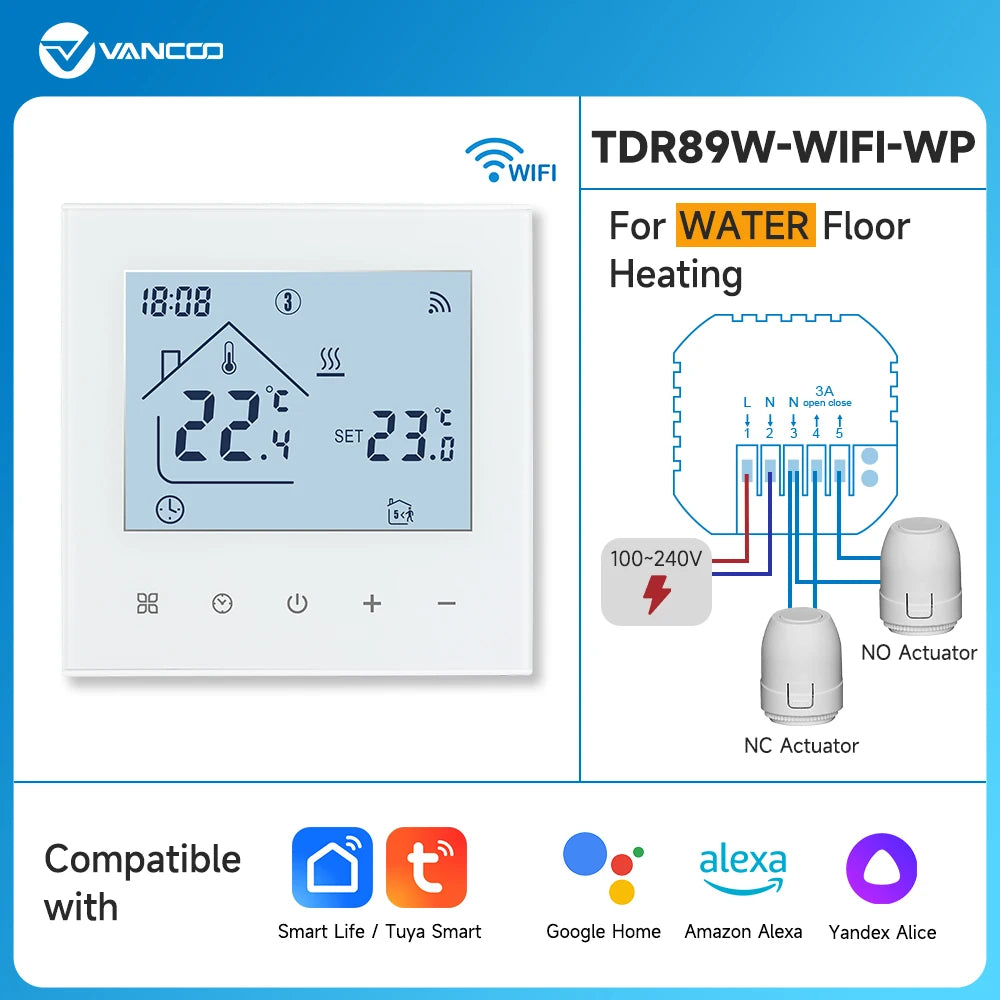

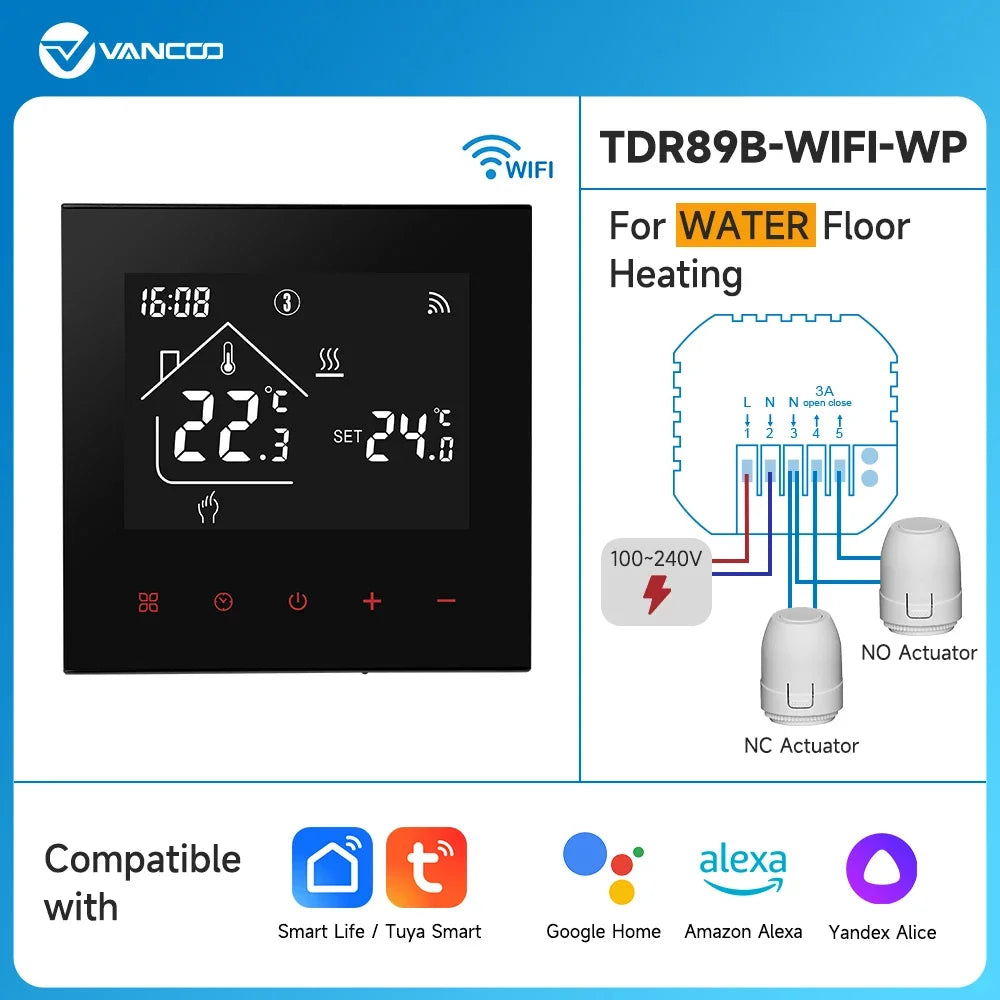

------  TDR89B-WIFI-WP  ------

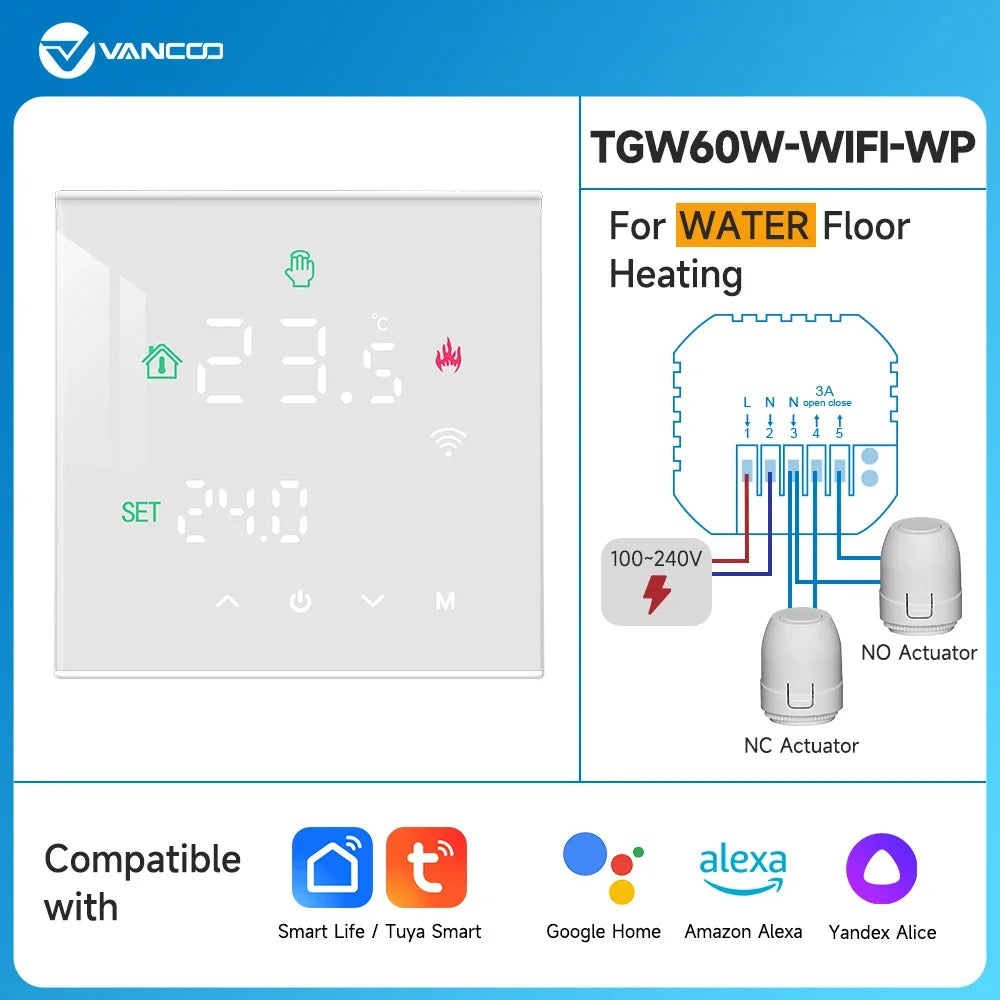

------  TGW60-WIFI-WP  ------

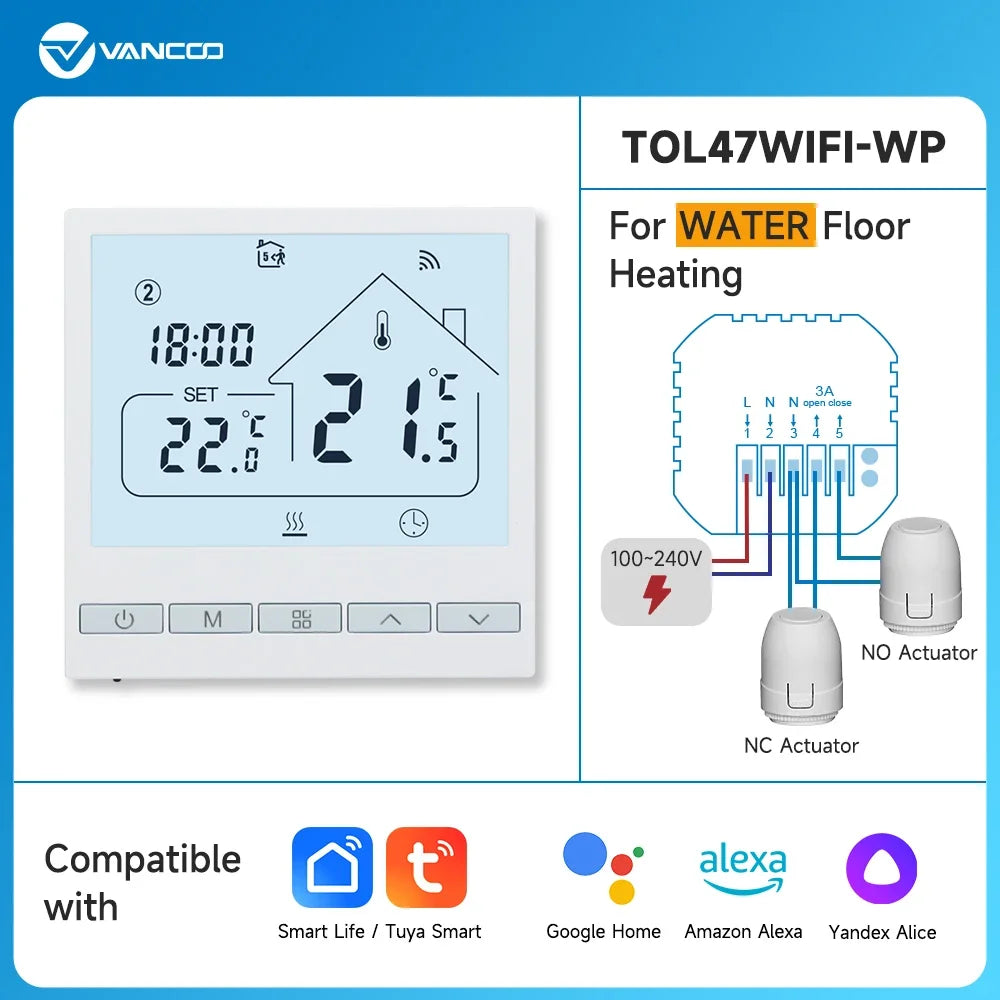

------  TOL47WIFI-WP  ------

------  TGT70WIFI-WP  ------

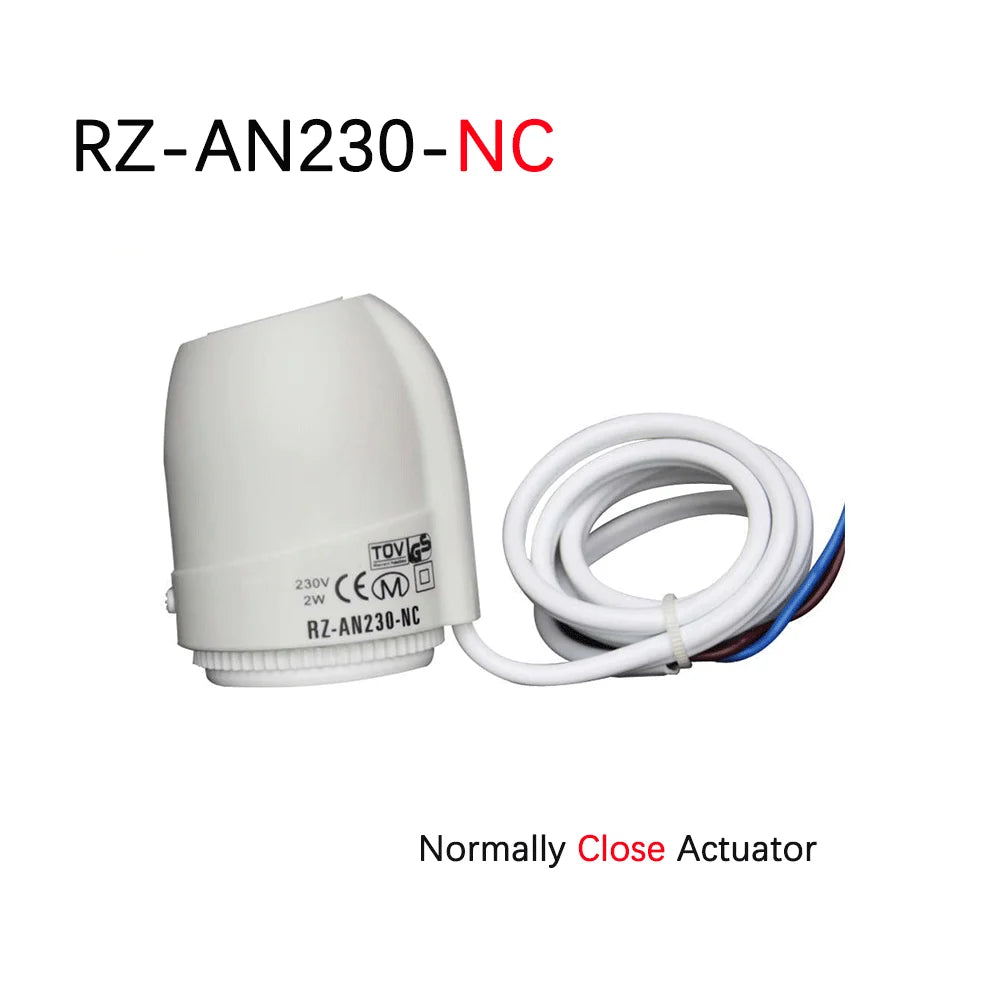

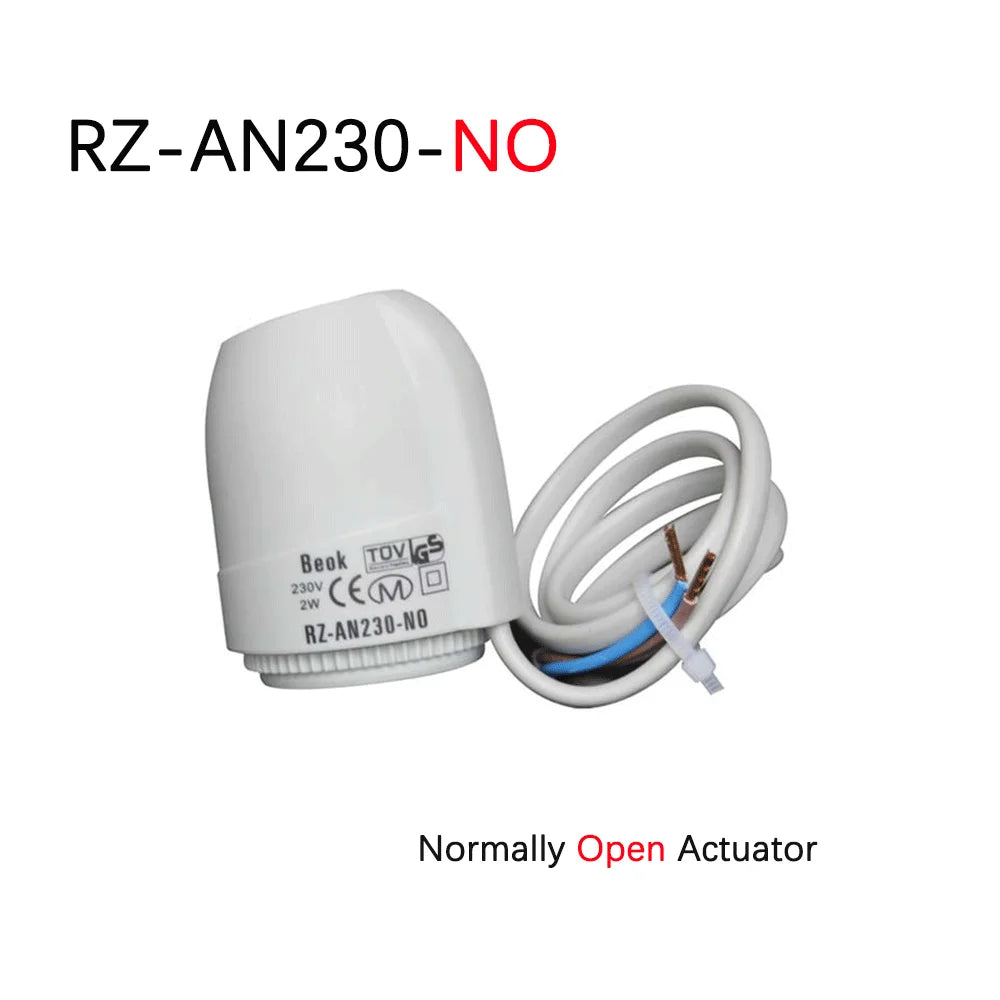

------  RZ AN230 SERIES  ------
